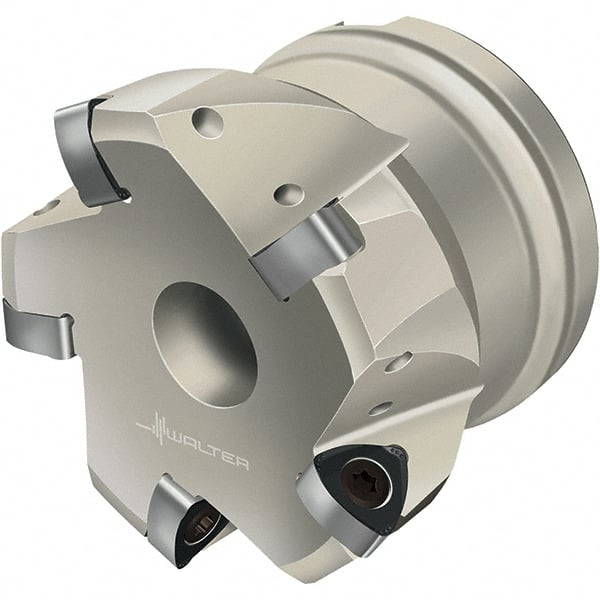

Walter - 63.5mm Cut Diam, 25.4mm Arbor Hole, 2mm Max Depth of Cut, Indexable Chamfer & Angle Face Mill - 4 Inserts, P23696 Insert, Right Hand Cut, 4 Flutes, Through Coolant, Series Xtra-tec
Item #: 33872581
Brand: Walter
Model #: 5882949
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.50 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | P23696 |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | F4030 |
| Number of Flutes | 4 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.5510 |
| Maximum Insert Radius (Decimal Inch) | 0.0630 |
| Complete Insert Compatibility | P23696-2.0 |
