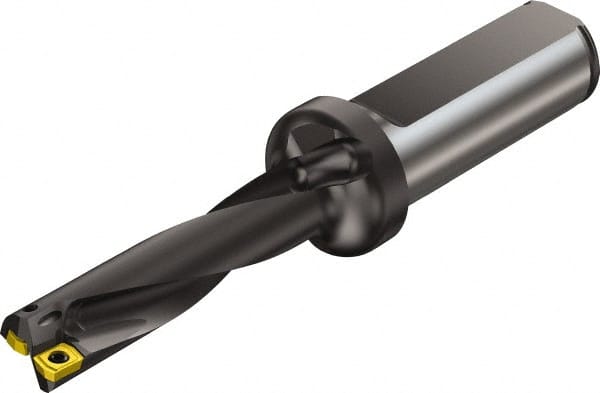

Sandvik Coromant - 3.8885" Max Drill Depth, 4xD, 23.7998mm Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 33873803
Brand: Sandvik Coromant
Model #: 5723770
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-04 |
| Drill Diameter (mm) | 23.80 |
| Drill Diameter (Decimal Inch) | 0.9370 |
| Maximum Drill Depth (Decimal Inch) | 3.8885 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 2.8 |
| Insert Size (Decimal Inch) | 0.1102 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9646 |
| Maximum Drill Diameter (mm) | 23.80 |
| Overall Length/Projection (mm) | 172.89 |
| Overall Length/Projection (Decimal Inch) | 6.8067 |
| Insert Compatibility (Outside or Peripheral) | 04P |
| Flute Length (mm) | 111.87 |
| Flute Length (Decimal Inch) | 4.4045 |
| Body Length (Decimal Inch) | 3.8580 |
| Body Length (mm) | 97.99 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Radius (Decimal Inch) | 0.4685 |
| Series | CoroDrill 880 |
