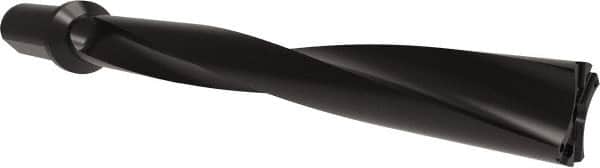

Allied Machine and Engineering - Series APX 44, 8xD, 2" Diam Weldon Flat Shank, Drill Body - 18.5781" Body Length to Flange, W4408H Toolholder, 2.0075 Nose Diam, 23.0781" OAL, Through Coolant
Item #: 33909243
Brand: Allied Machine and Engineering
Model #: W4408H-200F
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | APX 44 |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Drill Body Length to Flange (Decimal Inch) | 18.5781 |
| Toolholder Style | W4408H |
| Nose Diameter (Decimal Inch) | 2.0075 |
| Overall Length (Decimal Inch) | 23.0781 |
| Gage Length (Decimal Inch) | 18.5781 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 4.5000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Size (Inch) | 1/4 |
