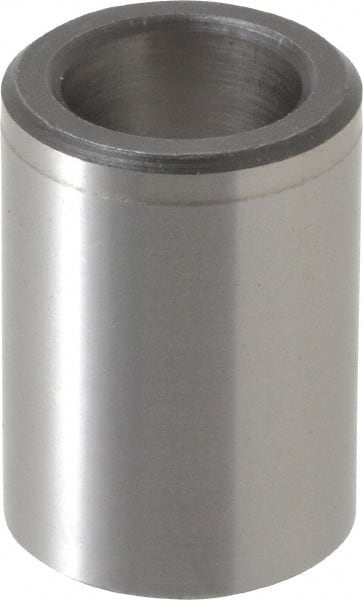

Boneham - 12mm Inside Diam, Headless LM Drill Bushing Liner
Item #: 64995038
Brand: Boneham
Model #: AM00000380
Features and Benefits
LM (headless press fit metric) liners are permanently installed bushings used to hold renewable drill bushings. They protect the jig plate from wear and damage caused by bushing replacements. A chamfer combination provides assistance by starting the liner bushing into the hole resulting in easier insertions.
| Product Specifications | |
|---|---|
| Head or Headless | Headless |
| Liner Industry Code | LM |
| Inside Diameter (mm) | 12 |
| Body Outside Diameter (mm) | 18 |
| Overall Liner Length (mm) | 25 |
