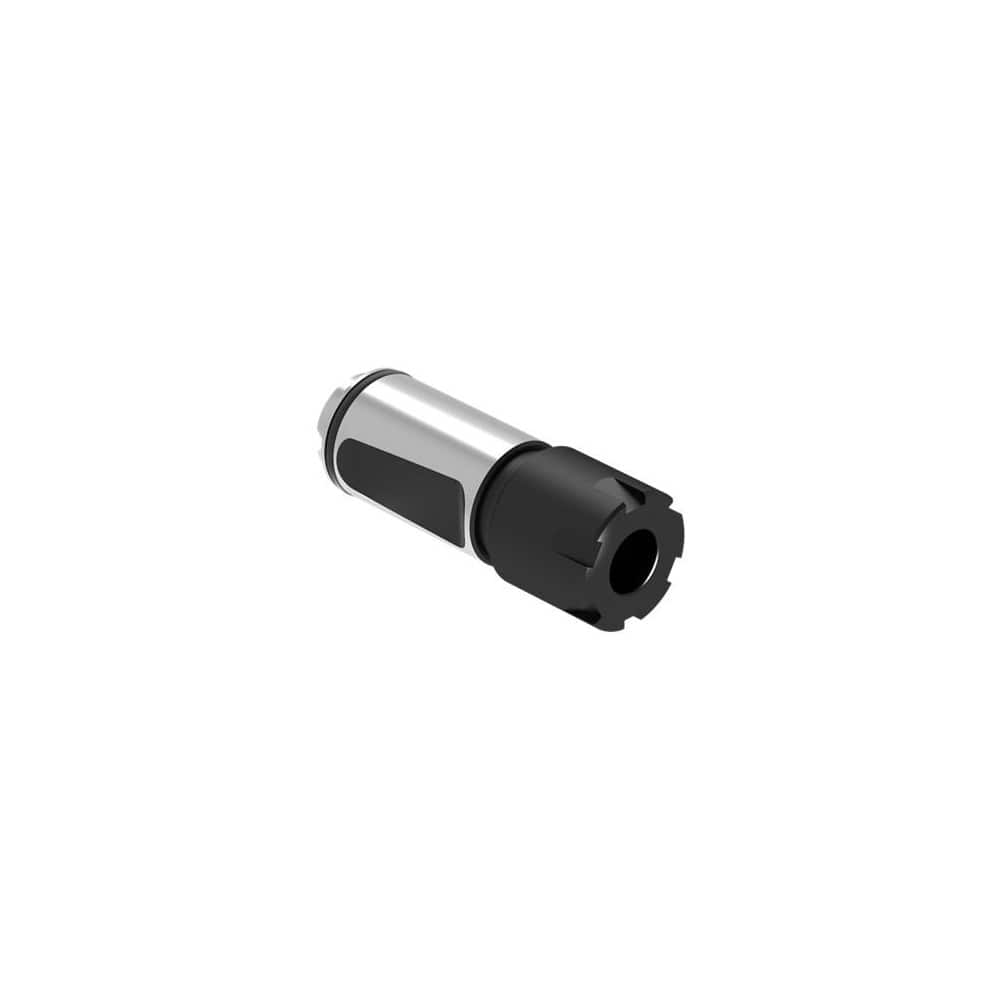

Collet Chuck: 1 to 13 mm Capacity, ER Collet, 20 mm Shank Dia, Straight Shank, Dual Contact 27.5 mm Projection, Through Coolant
Item #: 33951765
Brand: WNT
Model #: 7298406002
Product Specifications
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Straight |
| Projection (mm) | 27.50 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 13.00 |
| Overall Length (mm) | 27.50 |
| Overall Length (Decimal Inch) | 27.5000 |
| Actuator Type | Key |
| Dual Contact | Yes |
| Shank Diameter (Decimal Inch) | 20.0000 |
| Shank Diameter (mm) | 20.00 |
| Material | Steel |
