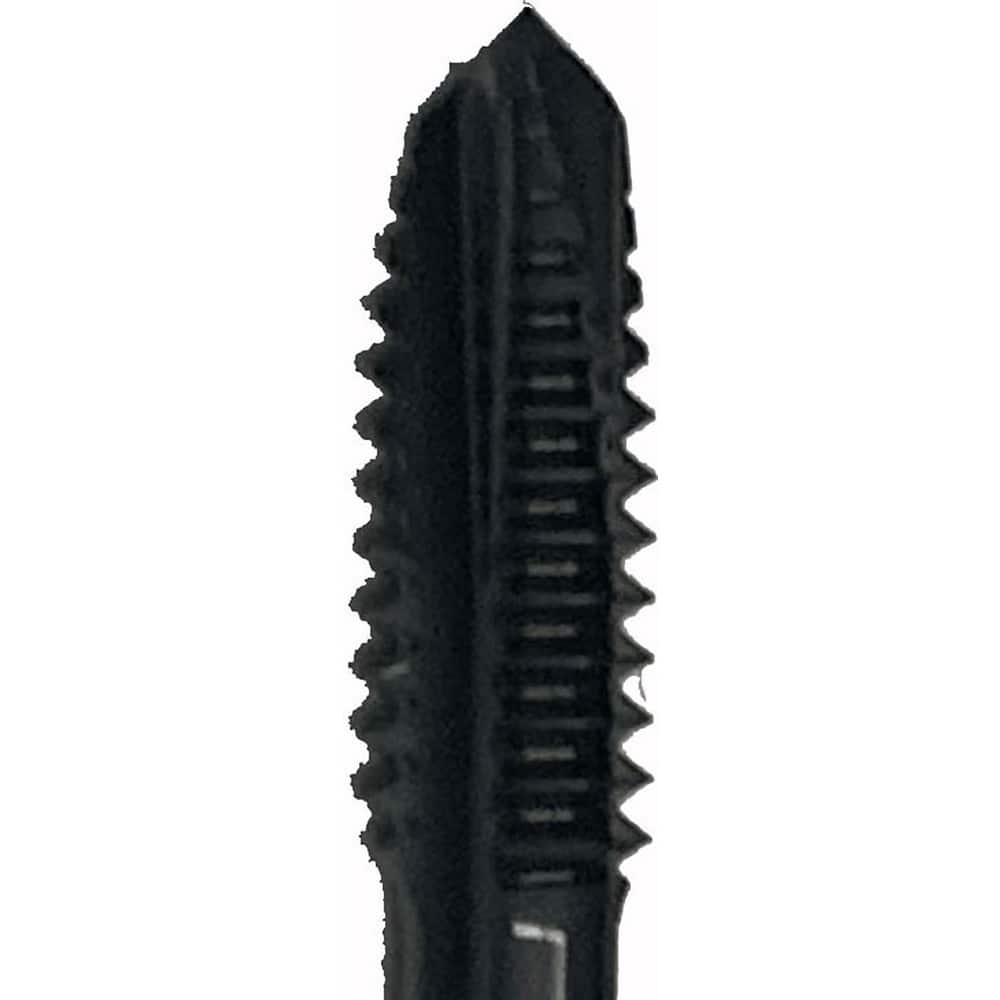

Spiral Point Tap: 1-3/8-12, UNF, 4 Flutes, 3 to 5, 2B, Vanadium High Speed Steel, Oxide Finish 2.165″ Thread Length, 7.87″ OAL, Right Hand, H5, Series Z-PRO PO
Item #: 34027813
Brand: Yamawa
Model #: PSU22S5NEX
Product Specifications
| Material | Vanadium High Speed Steel |
| Coating/Finish | Oxide |
| Thread Size (Inch - 0 Decimals) | 1-3/8-12 |
| Thread Standard | UNF |
| Thread Limit | H5 |
| Thread Pitch (Decimal Inch) | 12.0000 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 2.1650 |
| Thread Depth (Decimal Inch) | 2.1650 |
| Overall Length (Decimal Inch) | 7.8700 |
| Chamfer | 3 to 5 |
| Series | Z-PRO PO |
| Teeth per Inch | 12 |
| Coolant Through | No |
| Class Of Fit | 2B |
| Number Of Flutes | 4 |
