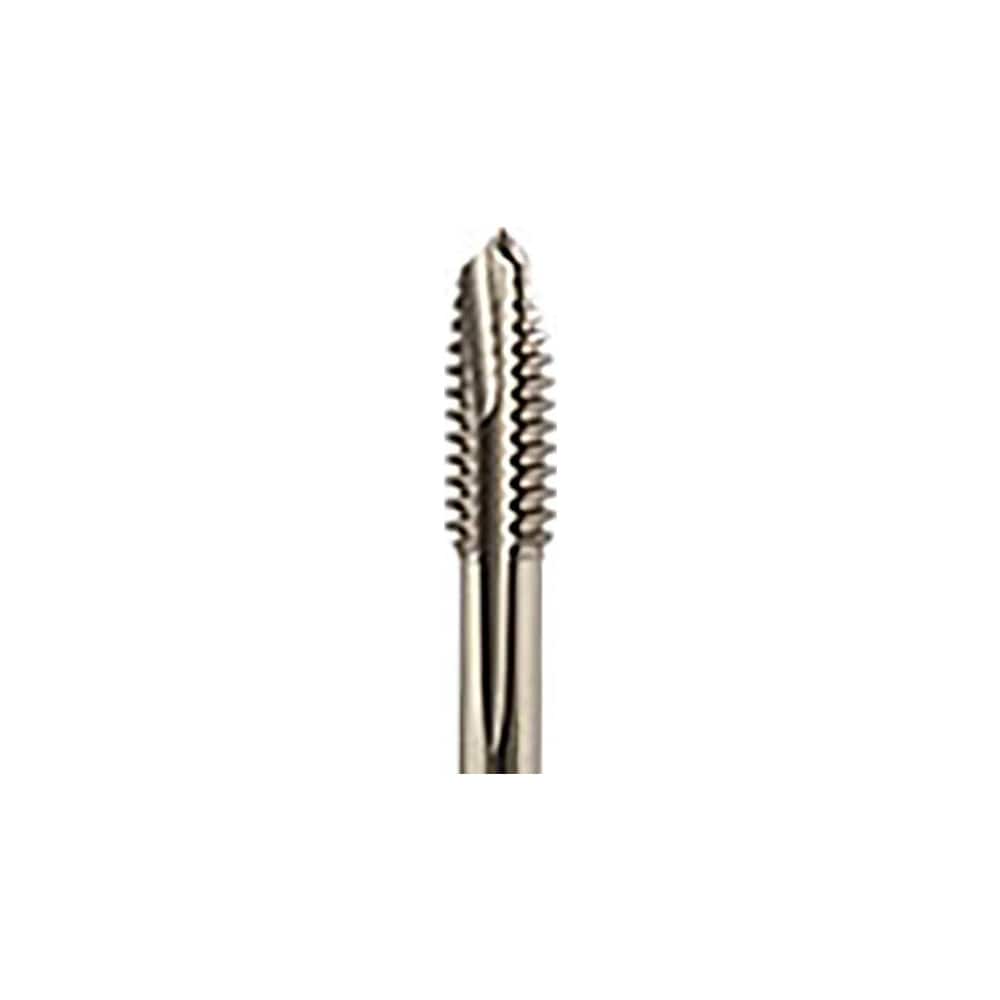

Spiral Point Tap: 1-12, UNF, 3 Flutes, 3 to 5, 2B, Vanadium High Speed Steel, TICN Finish 1.457″ Thread Length, 6.3″ OAL, Right Hand, H5, Series Z-PRO PO
Item #: 34028019
Brand: Yamawa
Model #: PSU16S5NEB-TICN
Product Specifications
| Material | Vanadium High Speed Steel |
| Coating/Finish | TICN |
| Thread Size (Inch - 0 Decimals) | 1-12 |
| Thread Standard | UNF |
| Thread Limit | H5 |
| Thread Pitch (Decimal Inch) | 12.0000 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.4570 |
| Thread Depth (Decimal Inch) | 1.4570 |
| Overall Length (Decimal Inch) | 6.3000 |
| Chamfer | 3 to 5 |
| Series | Z-PRO PO |
| Teeth per Inch | 12 |
| Coolant Through | No |
| Class Of Fit | 2B |
| Number Of Flutes | 3 |
