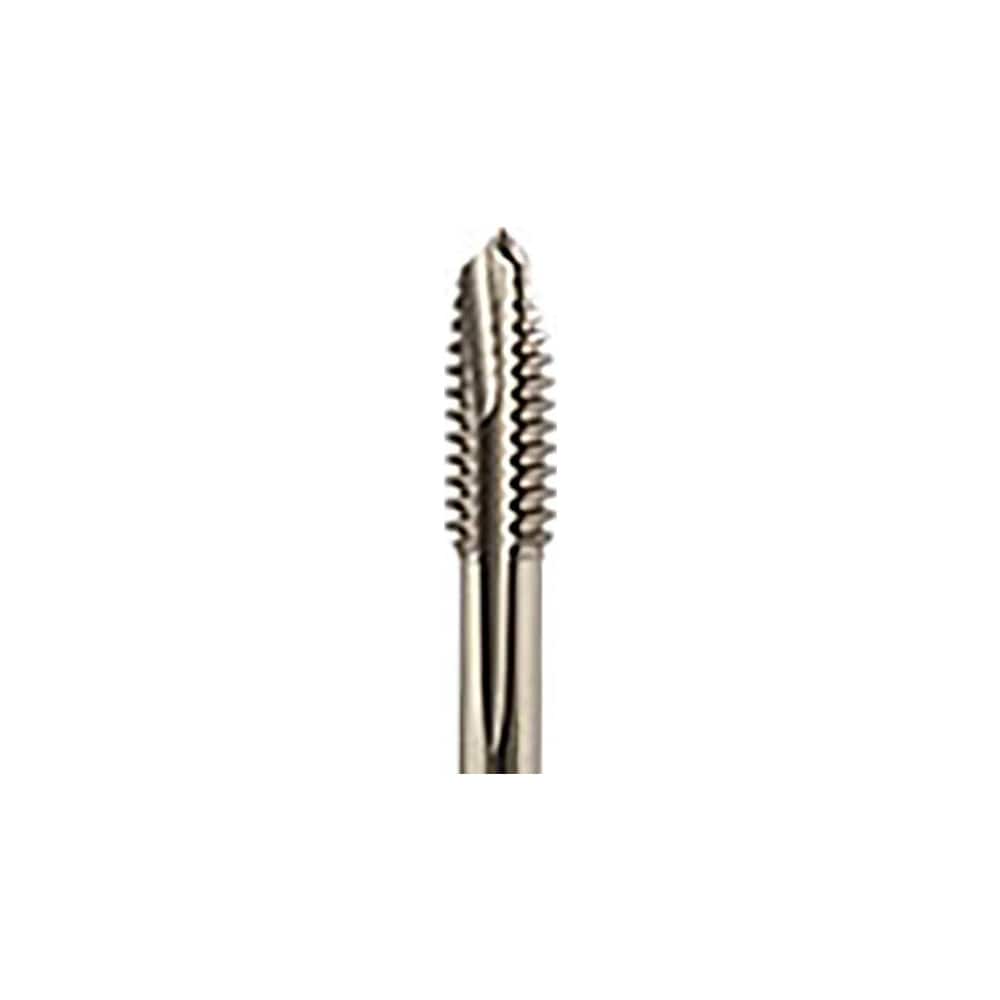

Spiral Point Tap: 5/16-24, UNF, 3 Flutes, 3 to 5, 2B, Vanadium High Speed Steel, TICN Finish 0.748″ Thread Length, 3.54″ OAL, Right Hand, H3, Series Z-PRO PO
Item #: 34028449
Brand: Yamawa
Model #: PSU05M3NEB-TICN
Product Specifications
| Material | Vanadium High Speed Steel |
| Coating/Finish | TICN |
| Thread Size (Inch - 0 Decimals) | 5/16-24 |
| Thread Standard | UNF |
| Thread Limit | H3 |
| Thread Pitch (Decimal Inch) | 24.0000 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.7480 |
| Thread Depth (Decimal Inch) | 2.1260 |
| Overall Length (Decimal Inch) | 3.5400 |
| Chamfer | 3 to 5 |
| Series | Z-PRO PO |
| Teeth per Inch | 24 |
| Coolant Through | No |
| Class Of Fit | 2B |
| Number Of Flutes | 3 |
