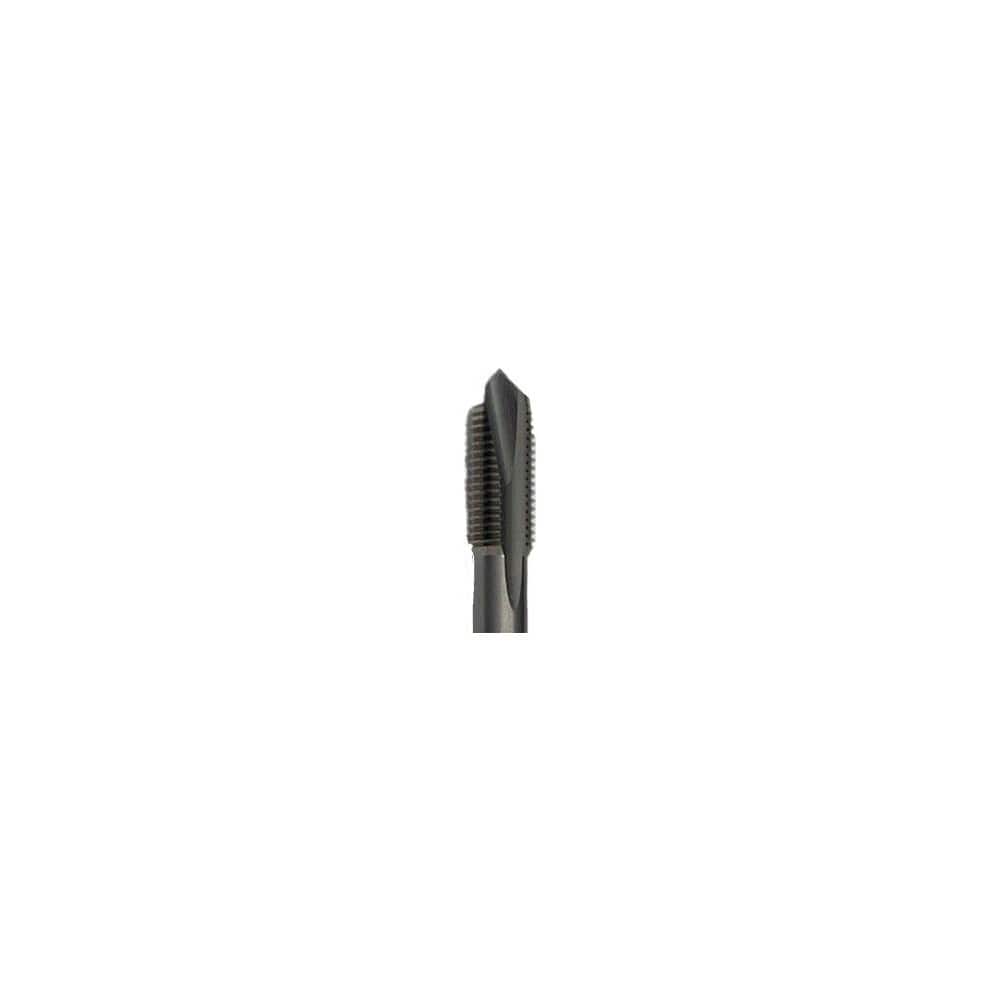

Spiral Point Tap: #10-32, UNF, 3 Flutes, 3 to 5, 2B, Vanadium High Speed Steel, TICN Finish 17/32″ Thread Length, 2.38″ OAL, Right Hand, H7, Series ZELX SS
Item #: 34031336
Brand: Yamawa
Model #: 382670TICN
Product Specifications
| Material | Vanadium High Speed Steel |
| Coating/Finish | TICN |
| Thread Size (Inch - 0 Decimals) | #10-32 |
| Thread Standard | UNF |
| Thread Limit | H7 |
| Thread Pitch (Decimal Inch) | 32.0000 |
| Thread Direction | Right Hand |
| Thread Length (Inch) | 17/32 |
| Thread Length (Decimal Inch) | 0.5310 |
| Thread Depth (Decimal Inch) | 0.8750 |
| Overall Length (Decimal Inch) | 2.3800 |
| Chamfer | 3 to 5 |
| Series | ZELX SS |
| Teeth per Inch | 32 |
| Coolant Through | No |
| Class Of Fit | 2B |
| Number Of Flutes | 3 |
