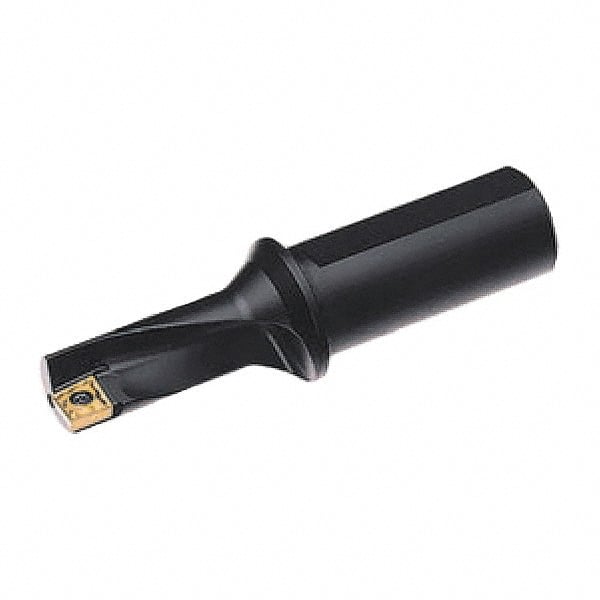

Allied Machine and Engineering - 1.77" Max Drill Depth, 2.25xD, 25mm Diam, Indexable Insert Drill - 1 Insert, 1" Shank Diam, Straight Shank
Item #: 34959338
Brand: Allied Machine and Engineering
Model #: 11065236
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | EC |
| Drill Diameter (mm) | 25.00 |
| Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Depth (Decimal Inch) | 1.7700 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.25xD |
| Insert Size (Decimal Inch) | 0.3940 |
| Number of Drill Inserts | 1 |
| Maximum Drill Diameter (Decimal Inch) | 1.0160 |
| Overall Length/Projection (Decimal Inch) | 4.4200 |
| Insert Compatibility | XCET 10T304FN-27P; XCET 10T304FN-27Q; XCET 10T308FN-27P; XCET 10T308FN-27Q; XCNT 10T304EN; XCNT 10T304EN-M50Q; XCNT 10T308EN; XCNT 10T308EN-M50Q |
| Flute Length (Decimal Inch) | 1.7700 |
| Body Length (Decimal Inch) | 2.1700 |
| Shank Length (Decimal Inch) | 2.2500 |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Series | EcoCut Classic |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
