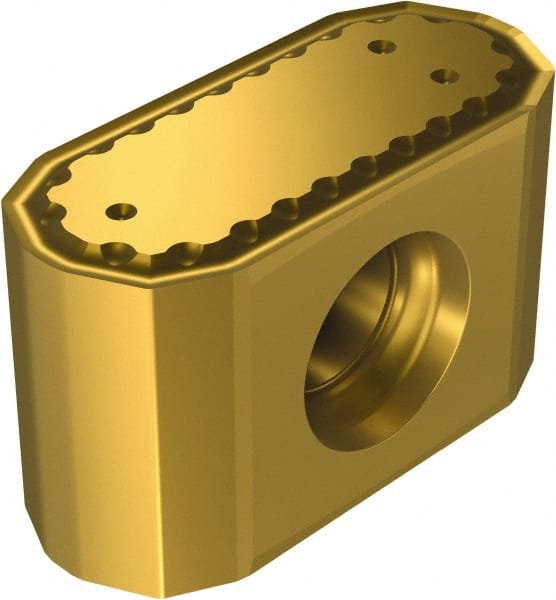

Sandvik Coromant - 425N1707 KLW Grade 1020 Carbide Milling Insert - TiAlN Finish, 10mm Thick
Item #: 35006972
Brand: Sandvik Coromant
Model #: 6718004
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 425N |
| Insert Size | 1707 |
| Material | Carbide |
| Manufacturer's Grade | 1020 |
| Coating | TiAlN |
| Width (mm) | 7.50 |
| Width (Decimal Inch) | 0.2953 |
| Thickness (mm) | 10.00 |
| Thickness (Decimal Inch) | 0.3937 |
| Hole Diameter (mm) | 4.70 |
| Hole Diameter (Decimal Inch) | 0.1850 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | KLW |
| Maximum Depth of Cut (mm) | 0.92 |
| Maximum Depth of Cut (Decimal Inch) | 0.0362 |
| Cutting Edge Style | Rounded |
| ISO Number | 425N-1707E-KLW12 1020 |
