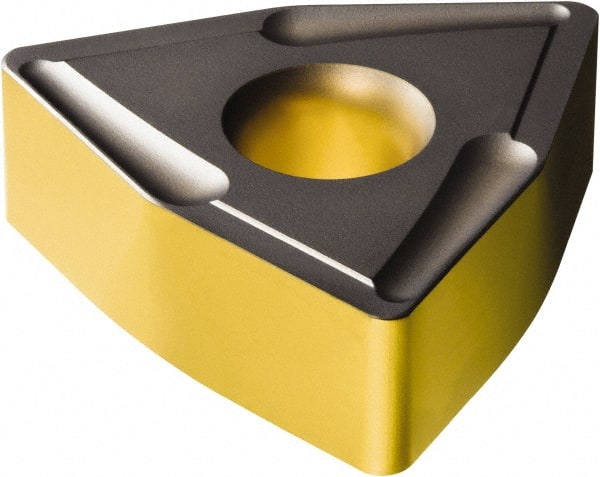

Sandvik Coromant - WNMT1509 PM Grade 4325 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 80° Trigon, 22.23mm Inscr Circle, 3/8" Thick, 11mm Corner Radius
Item #: 35010180
Brand: Sandvik Coromant
Model #: 6265920
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMT |
| Insert Size | 1509 |
| Material | Carbide |
| Inscribed Circle (mm) | 22.23 |
| Inscribed Circle (Decimal Inch) | 0.8750 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Thickness (mm) | 9.53 |
| Corner Radius (mm) | 11 |
| Corner Radius (Decimal Inch) | 0.4331 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | PM |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3122 |
| ISO Number | WNMT 15 09 31-PM 4325 |
| Lead Angle | 120.000 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Rounded |
| Multi Use Application | peeling;peeling |
| Shape | Trigon |
