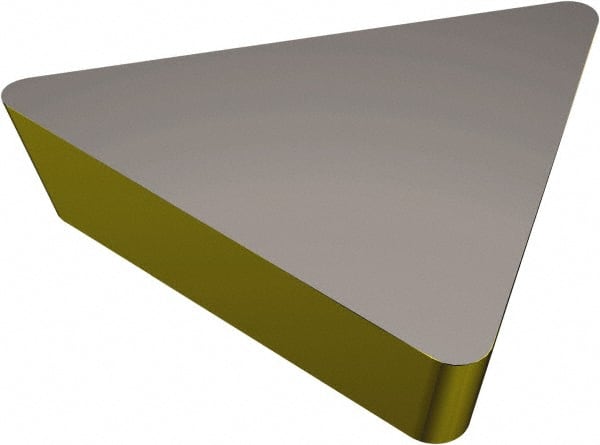

Sandvik Coromant - TPU222 PUN Grade 3225 Carbide Turning Insert - TiCN/Al2O3 Finish, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 35016617
Brand: Sandvik Coromant
Model #: 6868403
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPU |
| Insert Size | 222 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.17 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 3225 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | PUN |
| ISO Number | TPUN 11 03 08 3225 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Maximum Depth of Cut (mm) | 10.20 |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Rounded |
| Shape | Triangle |
