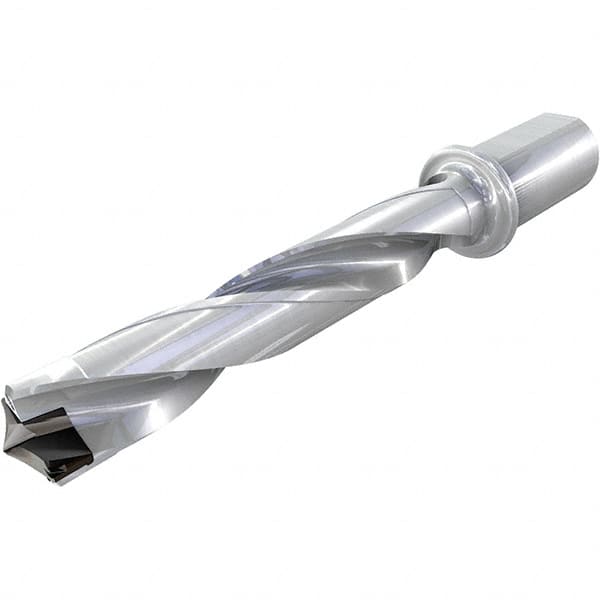

Iscar - 1.339 to 1-3/8" Diam, 3xD, 4" Max Drill Depth, 1-1/4" Shank Diam, 8.56" OAL, Replaceable Tip Drill - HFP-IQ Insert, 34 Seat Size, DFN Toolholder, Series ChamIOdrill
Item #: 35141043
Brand: Iscar
Model #: 3260212
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | ChamIOdrill |
| Minimum Drill Diameter (Decimal Inch) | 1.3390 |
| Maximum Drill Diameter (Decimal Inch) | 1.3740 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 4.0100 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | HFP-IQ |
| Insert Seat Size | 34 |
| Toolholder Style | DFN |
| Shank Type | Flat Shank |
| Tip Length (Decimal Inch) | 0.3000 |
| Flute Length (Decimal Inch) | 1.3740 |
| Body Length (Decimal Inch) | 5.8800 |
| Overall Length (Decimal Inch) | 8.5600 |
| Shank Length (Decimal Inch) | 2.6800 |
