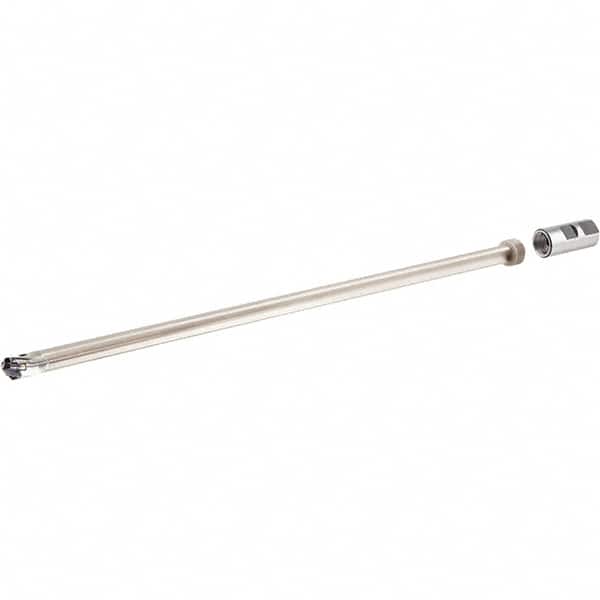

Iscar - 0.551 to 0.57" Diam, 31.6" Max Drill Depth, 0.63" Shank Diam, 33.622" OAL, Replaceable Tip Drill - HCP-IQ, ICG, ICK, ICK-2M, ICM, ICP, iCP-2M, QCP-2M Insert, 14 Seat Size, MNCNT Toolholder, Series SumoGun
Item #: 35142025
Brand: Iscar
Model #: 3260231
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoGun |
| Minimum Drill Diameter (Decimal Inch) | 0.5510 |
| Maximum Drill Diameter (Decimal Inch) | 0.5700 |
| Maximum Drill Depth (Decimal Inch) | 31.6000 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Style | HCP-IQ; ICG; ICK; ICK-2M; ICM; ICP; iCP-2M; QCP-2M |
| Insert Seat Size | 14 |
| Toolholder Style | MNCNT |
| Tip Length (Decimal Inch) | 0.1000 |
| Flute Length (mm) | 31.60 |
| Body Length (mm) | 33.15 |
| Overall Length (Decimal Inch) | 33.6220 |
| Shank Length (Decimal Inch) | 0.4720 |
