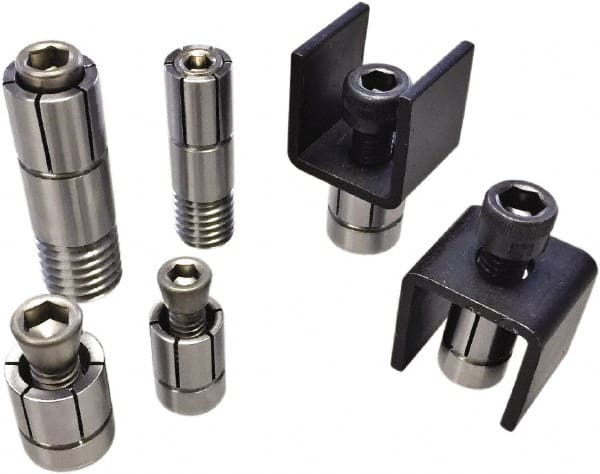

Mitee-Bite - 0.25 to 0.015" Expansion Diam, 500 Lb Holding Force, 5-40 Mounting Screw, Stainless Steel ID Expansion Clamp - 1/4" Flange Diam, 1/4" Flange Thickness, 1/4" Mount Hole Diam, 1 Mount Hole, 1/2" Overall Height
Item #: 35171545
Brand: Mitee-Bite
Model #: 31730
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is made of iron and chromium and is resistant to rust and corrosion. It offers high tensile strength and can be used in several environments.
| Product Specifications | |
|---|---|
| Flange Diameter (Decimal Inch) | 0.2500 |
| Maximum Expansion Diameter (Decimal Inch) | 0.0150 |
| Minimum Expansion Diameter (Decimal Inch) | 0.2500 |
| Holding Force (Lb.) | 500.00 |
| Mounting Screw Thread Size | 5-40 |
| Material | Stainless Steel |
| Mount Hole Diameter (Decimal Inch) | 0.2500 |
| Flange Thickness (Decimal Inch) | 0.2500 |
| Expansion Height (Decimal Inch) | 0.2700 |
| Overall Height (Decimal Inch) | 0.5000 |
| Number of Mount Holes | 1 |
| Thread Length Below Base (Decimal Inch) | 0.2900 |
