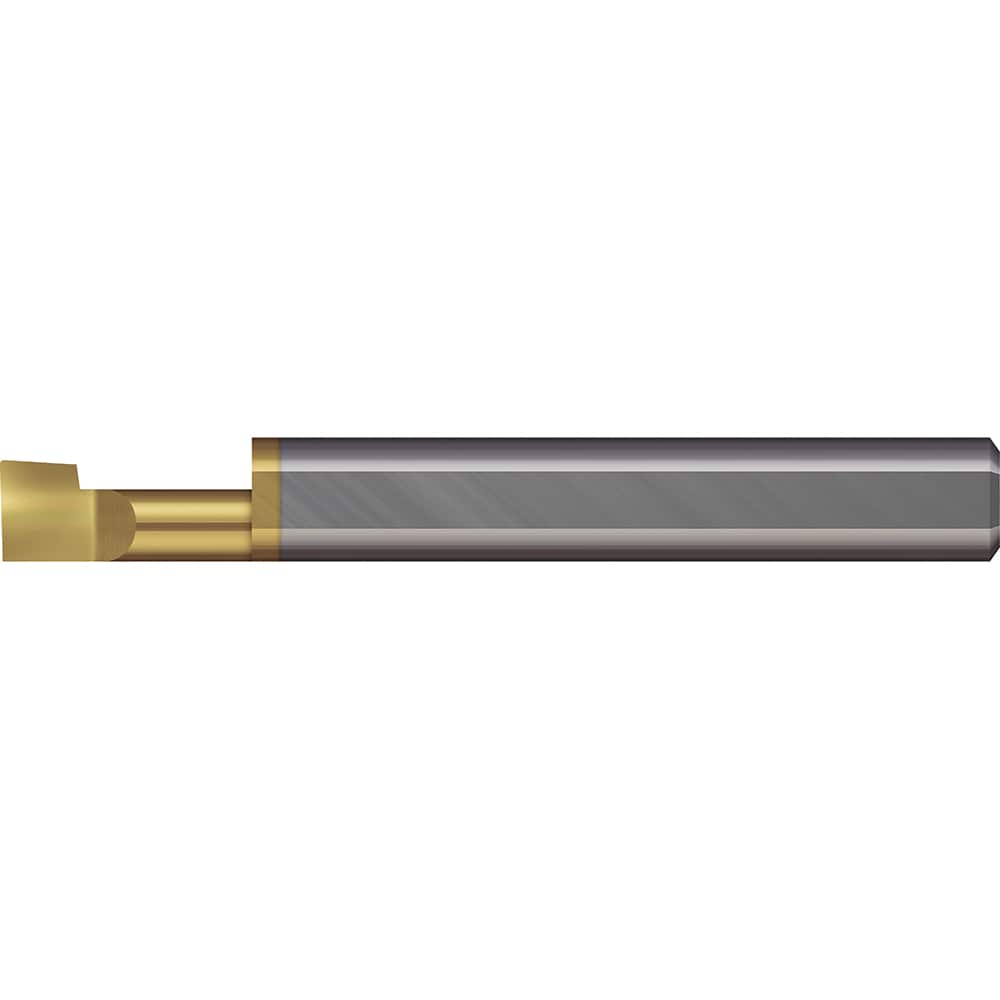

Boring Bar: 0.16″ Min Bore, 0.9″ Max Depth, Left Hand Cut, Solid Carbide 3/16″ Shank Dia, 2″ OAL, 0.006″ Corner Radius
Item #: 35185529
Brand: Micro 100
Model #: BBL-160900G
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Left Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1600 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.9000 |
| Shank Diameter (Decimal Inch) | 3/16 |
| Overall Length (Inch) | 2 |
| Finish Coating | TiN |
| Corner Radius (Decimal Inch) | 0.0060 |
| Corner Radius | 0.006 in |
| Offset (Decimal Inch) | 0.0663 |
| Overall Length (Decimal Inch) | 2.0000 |
