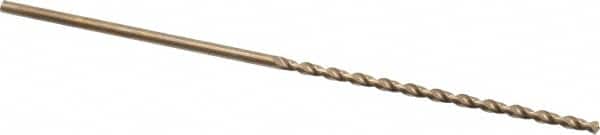

Cleveland - #35 135° Parabolic Flute Cobalt Taper Length Drill Bit
Item #: 02148294
Brand: Cleveland
Model #: C16758
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide gold finish provides a polished finish and prevents chip building, galling and welding on a workpiece. It is commonly used on low carbon, stainless steel and ferrous metals.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Wire) | #35 |
| Drill Bit Size (Decimal Inch) | 0.1100 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Oxide/Gold |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | No |
| Point Type | Split Point |
| Flute Length (Inch) | 2-3/4 |
| Flute Length (Decimal Inch) | 2.7500 |
| Flute Length (mm) | 69.85 |
| Overall Length (Inch) | 5-1/8 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Material Grade | M42 |
| Series/List | 2575 |
