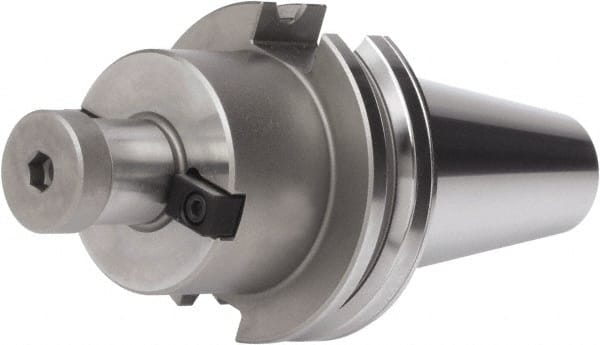

Accupro - CAT50 Dual Contact Taper Shank 5-1/2 - 6" Cutting Diam 2" Pilot Shell Mill Holder
Item #: 42826628
Brand: Accupro
Model #:
| Product Specifications | |
|---|---|
| Shank Type | Dual Contact Taper |
| Taper Size | CAT50 |
| Pilot Diameter (mm) | 50.80 |
| Pilot Diameter (Inch) | 2 |
| Pilot Diameter (Decimal Inch) | 2.0000 |
| Projection Flange to Nose End (Inch) | 4 |
| Projection Flange to Nose End (mm) | 101.60 |
| Projection Flange to Nose End (Decimal Inch) | 4.0000 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 111.25 |
| Nose Diameter (Decimal Inch) | 4.3800 |
| Overall Length (mm) | 203.20 |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Balanced to (RPM) | 10000 |
| Shell Mill Cutting Diameter Range (Inch) | 5-1/2 - 6 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Lock Screw Thread Size | 1-14 |
