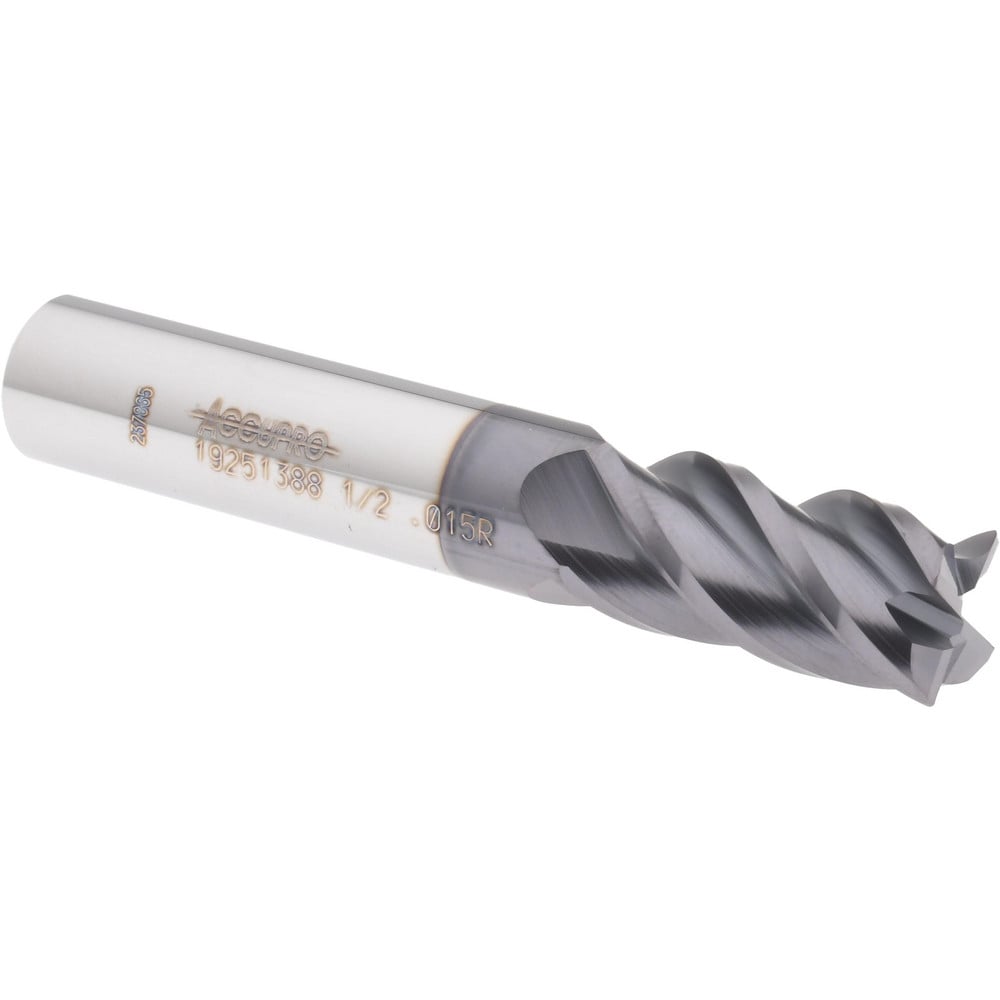

Corner Radius End Mill: 1/2" Dia, 1" LOC, 0.0150" Radius, 4 Flute, Solid Carbide
Item #: 19251388
Brand: Accupro
Model #: 14556429
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN+ |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1/2 |
| Corner Radius Tolerance | ±0.00100 in |
| Mill Diameter Tolerance | +0.000000/-0.002000 in |
| Shank Diameter Tolerance | +0.0001/-0.0004 in |
| UNSPSC Code | 27112803 |
| Material Grade | Micrograin |
| Series | 6/44 |
