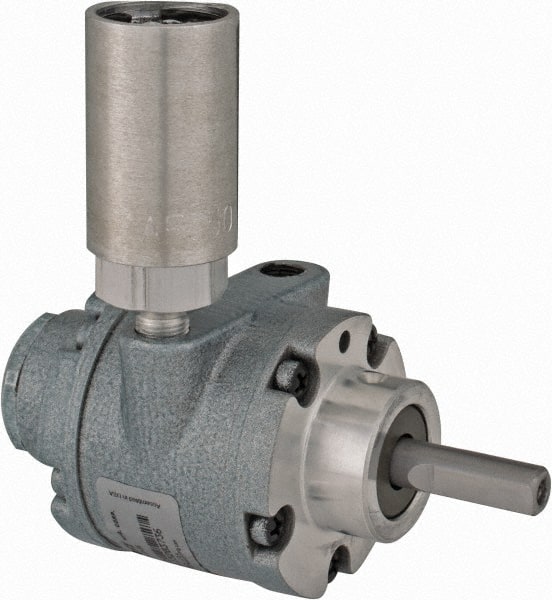

Gast - 1/2 hp Reversible Hub Air Actuated Motor - 6,000 Max RPM, 1.14" Shaft Length, 4.66" OAL, 3/8" Shaft Diam
Item #: 35364355
Brand: Gast
Model #: 1UP-NRV-3A
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Horsepower | 1/2 |
| Maximum RPM | 6000 |
| Minimum RPM | 500.00 |
| Shaft Length (Decimal Inch) | 1.140 |
| Shaft Diameter (Inch) | 3/8 |
| Shaft Rotation | Reversible |
| Maximum Working Pressure (psi) | 80 |
| Torque (In/Lb) | 6.00 |
| Diameter (Decimal Inch) | 2.4400 |
| Center Line | 1.050 |
| Mount | Hub |
| Height (Inch) | 2.22 |
| Maximum Consumption | 27 |
| Overall Length (Decimal Inch) | 4.6600 |
| PSC Code | 6105 |
