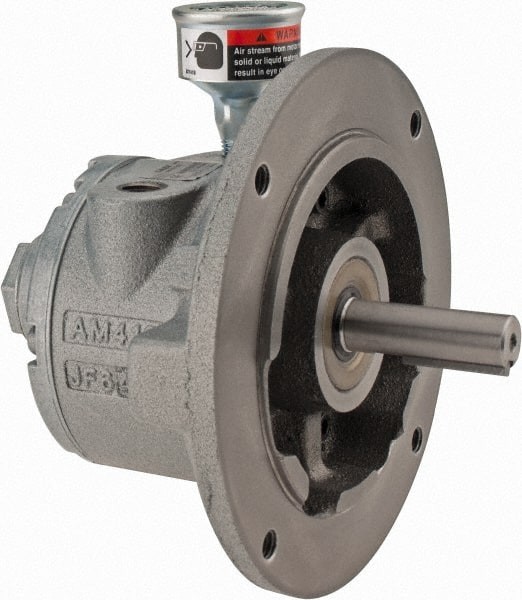

Gast - 1-1/2 hp Reversible NEMA 56C Air Actuated Motor - 3,000 Max RPM, 2.06" Shaft Length, 6.69" OAL, 5/8" Shaft Diam
Item #: 35364439
Brand: Gast
Model #: 4AM-NRV-50C
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Horsepower | 1-1/2 |
| Maximum RPM | 3000 |
| Minimum RPM | 300.00 |
| Shaft Length (Decimal Inch) | 2.060 |
| Shaft Diameter (Inch) | 5/8 |
| Shaft Rotation | Reversible |
| Maximum Working Pressure (psi) | 100 |
| Torque (In/Lb) | 56.00 |
| Diameter (Decimal Inch) | 6.5000 |
| Mount | NEMA 56C |
| Height (Inch) | 4.50 |
| Maximum Consumption | 70 |
| Overall Length (Decimal Inch) | 6.6900 |
| PSC Code | 6105 |
