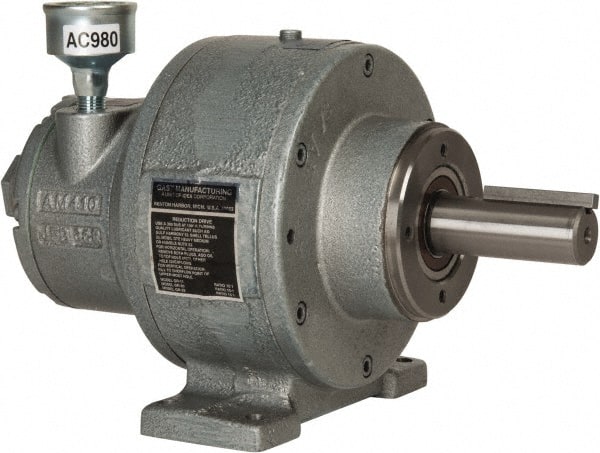

Gast - 1-1/2 hp Reversible Face/Foot Air Actuated Motor - 10:1 Gear Ratio, 300 Max RPM, 11.56" OAL, 1" Shaft Diam
Item #: 35364520
Brand: Gast
Model #: 4AM-RV-75-GR20
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Gear Ratio | 10:1 |
| Horsepower | 1-1/2 |
| Maximum RPM | 300 |
| Minimum RPM | 0.00 |
| Shaft Diameter (Inch) | 1 |
| Shaft Rotation | Reversible |
| Maximum Working Pressure (psi) | 80 |
| Torque (In/Lb) | 425.00 |
| Diameter (Decimal Inch) | 6.1300 |
| Center Line | 3.590 |
| Mount | Face/Foot |
| Height (Inch) | 6.63 |
| Maximum Consumption | 57 |
| Overall Length (Decimal Inch) | 11.5600 |
| PSC Code | 6105 |
