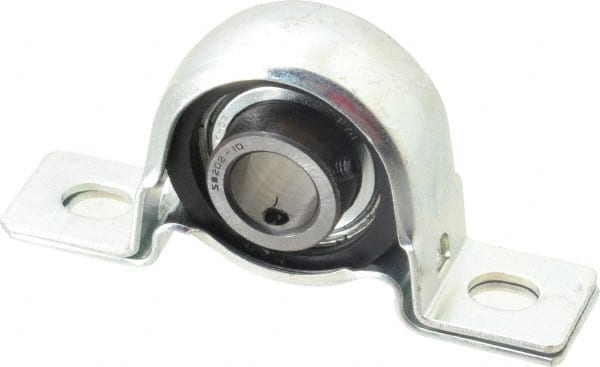

Value Collection - 5/8" ID, 3.8437" OAL x 2" OAH Pillow Block - 1,060 Lb Static Cap, 2,110 Lb Dyn Cap, 2.9843" Btw Mnt Hole Ctrs, 1" Base-to-Ctr Ht, Stamped Steel Rubber Mount
Item #: 35432152
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Pillow Block |
| Inside Diameter (Decimal Inch) | 0.6200 |
| Inside Diameter (Inch) | 5/8 |
| Width (Decimal Inch) | 1.1260 |
| Overall Length (Decimal Inch) | 3.8437 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Static Load Capacity (Pounds) | 1060.00 |
| Dynamic Load Capacity (Pounds) | 2110 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 2.9843 |
| Material | "Stamped Steel Pillow Block w/ Rubber OD & 5/8" Bearing" |
| Distance Between Base And Center (Decimal Inch) | 1.0000 |
| Bolt Size (Inch) | 5/16 |
| Bolt Size (Decimal Inch) | 0.3100 |
