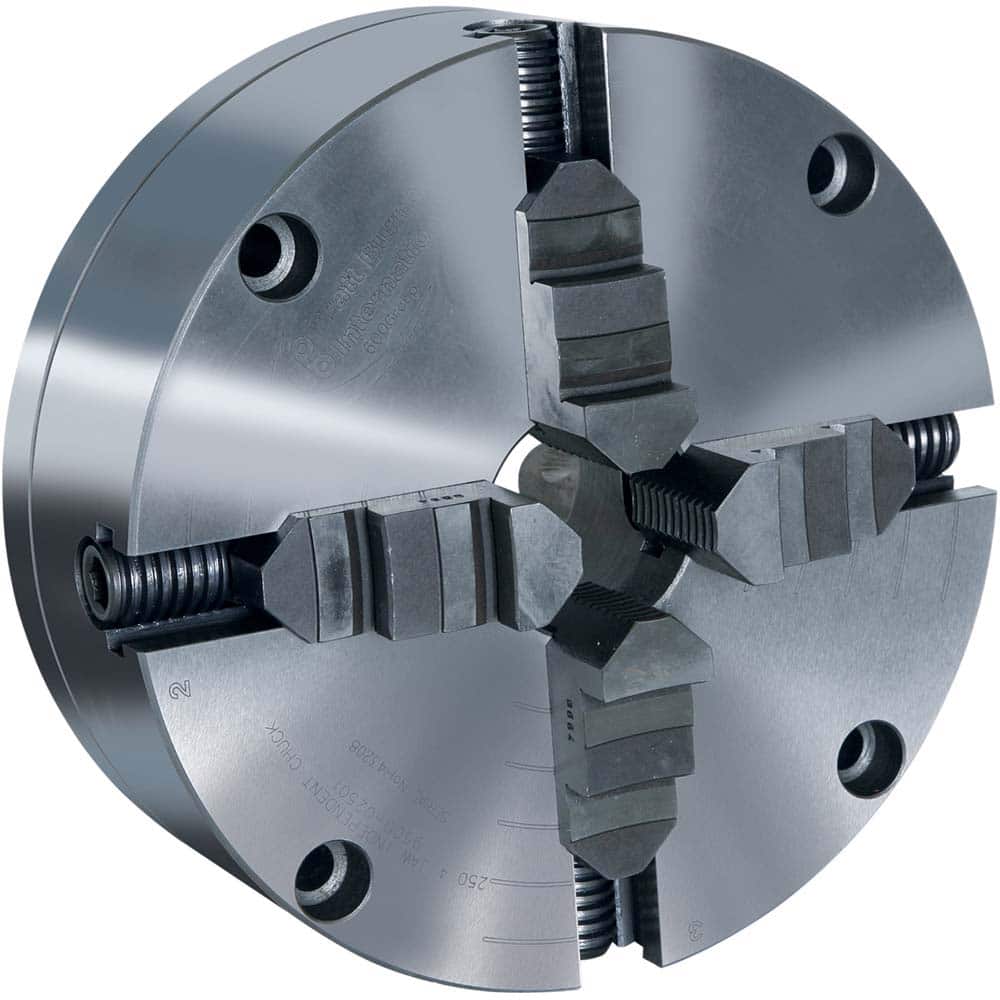

Pratt Burnerd America - Manual Lathe Chucks; Chuck Type: Independent ; Nominal Chuck Size: 8 ; Number of Jaws: 4 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 1.9700 ; Body Material: Cast Iron (Semi-Steel)
Item #: 35455237
Brand: Pratt Burnerd America
Model #: 814400
Product Specifications
Manual Lathe Chucks; Chuck Type: Independent ; Nominal Chuck Size: 8 ; Number of Jaws: 4 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 1.9700 ; Body Material: Cast Iron (Semi-Steel)
| Chuck Type | Independent |
| Nominal Chuck Size | 8 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 1.9700 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (Decimal Inch) | 7.8700 |
| Minimum Jaw Capacity (Inch) | 0.3125; 5/16 |
| Minimum Jaw Capacity (Decimal Inch) | 0.3125; 5/16 |
| Maximum Jaw Capacity (Inch) | 7.0000; 7 |
| Maximum Jaw Capacity (Decimal Inch) | 7.0000; 7 |
| Series | 144 |
| Jaw Height (Decimal Inch) | 1.2200 |
| Adjustable | Yes |
| Body Length (Decimal Inch) | 2.8300 |
| Includes | Hardened Operating Screws; Mounting Plate |
