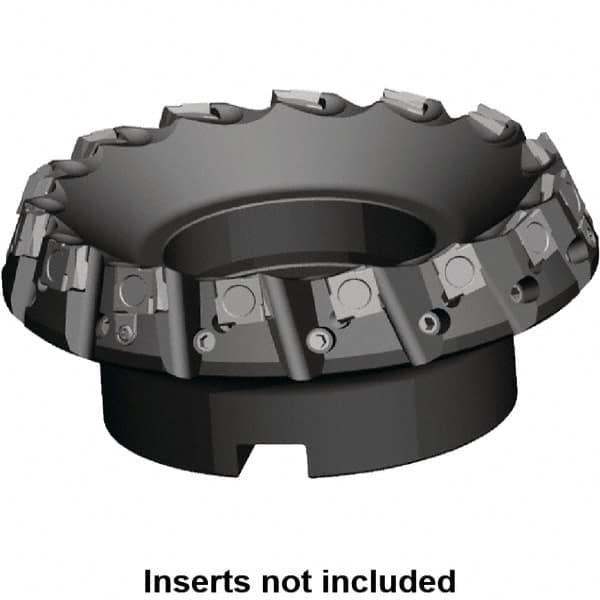

Kennametal - 10" Cut Diam, 2-1/2" Arbor Hole, 5.89mm Max Depth of Cut, 20° Indexable Chamfer & Angle Face Mill - 20 Inserts, SPHX 1205... Insert, Right Hand Cut, 20 Flutes, Series Fix-Perfect
Item #: 35475748
Brand: Kennametal
Model #: 1532254
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 10 |
| Cutting Diameter (mm) | 254.00 |
| Cutting Diameter (Decimal Inch) | 10.0000 |
| Arbor Hole Diameter (mm) | 63.50 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 20 |
| Overall Height (Decimal Inch) | 2.3750 |
| Overall Height (mm) | 60.33 |
| Insert Compatibility | SPHX 1205... |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 5.89 |
| Maximum Depth of Cut (Decimal Inch) | 0.2320 |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Clamp |
| Cutter Style | WUFP |
| Number of Flutes | 20 |
| Hub Diameter (Decimal Inch) | 7.1200 |
| Maximum Body Diameter (Decimal Inch) | 10.5039 |
| Maximum RPM | 1719 |
| Cutting Direction | Right Hand |
| Pitch | Coarse |
| Complete Insert Compatibility | SPHX 1205ZC.R |
