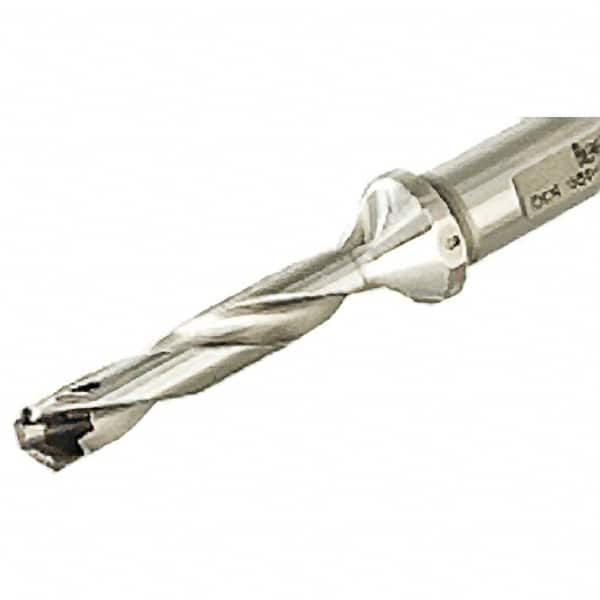

Iscar - 15mm to 15.91mm Diam, 8xD, 120mm Max Depth, 20mm Shank Diam, 193.85mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 35503960 Toolholder, Series SumoCham
Item #: 35503960
Brand: Iscar
Model #: 3202471
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 15.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.5910 |
| Maximum Drill Diameter (mm) | 15.91 |
| Maximum Drill Diameter (Decimal Inch) | 0.6265 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 4.7280 |
| Maximum Drill Depth (mm) | 120.09 |
| Shank Diameter (mm) | 20.02 |
| Shank Diameter (Decimal Inch) | 0.7880 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 143.81 |
| Body Length (Decimal Inch) | 5.6618 |
| Overall Length (mm) | 193.85 |
| Overall Length (Decimal Inch) | 7.6318 |
| Shank Length (mm) | 50.04 |
| Shank Length (Decimal Inch) | 1.9700 |
