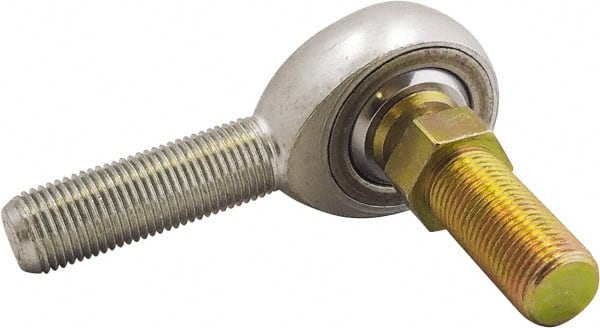

Made in USA - 5/16" ID, 7/8" Max OD, 7,640 Lb Max Static Cap, Male Spherical Rod End with Stud - 5/16-24 LH, 1-1/4" Shank Length, Alloy Steel with Steel Raceway
Item #: 35510866
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.3125 |
| Inside Diameter (Inch) | 5/16 |
| Style | Male Rod End w/ Stud |
| Maximum Outside Diameter (Decimal Inch) | 0.8750 |
| Maximum Outside Diameter (Inch) | 7/8 |
| Maximum Static Load Capacity (Pounds) | 7640.0 |
| Width (Inch) | 7/16 |
| Width (Decimal Inch) | 0.4375 |
| Thread Size | 5/16-24 |
| Material | Alloy Steel |
| Shank Diameter (Decimal Inch) | 0.0000 |
| Raceway Material | Steel |
| Shank Length (Decimal Inch) | 1.2500 |
| Thread Direction | Left Hand |
