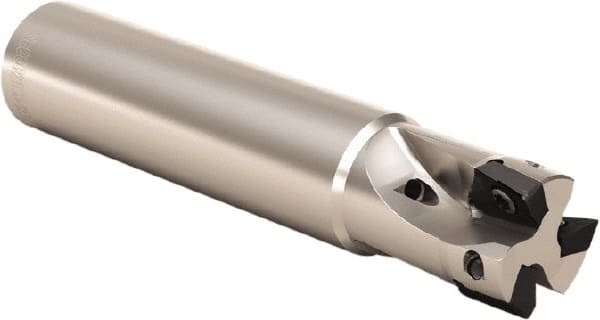

Seco - 7/8" Cut Diam, 0.197" Max Depth of Cut, 3/4" Shank Diam, 5.905" OAL, Indexable Square Shoulder End Mill - XO.X 0602 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Nano Turbo
Item #: 35537232
Brand: Seco
Model #: 55316
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.8750 |
| Cutting Diameter (Inch) | 7/8 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 5.9050 |
| Lead Angle | 90 |
| Series | Nano Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (Decimal Inch) | 0.7870 |
| Weldon Flat | No |
| Insert Compatibility | XO.X 0602 |
| Shank Length (Decimal Inch) | 5.1180 |
| Maximum RPM | 44000 |
