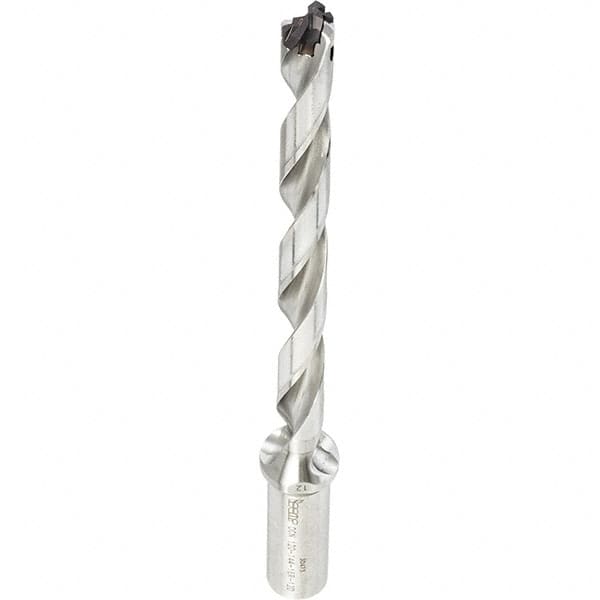

Iscar - 0.63" to 0.665" Diam, 12xD, 7.56" Max Depth, 3/4" Shank Diam, 10.53" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 16 Seat Size, 35545771 Toolholder, Series SumoCham
Item #: 35545771
Brand: Iscar
Model #: 3202832
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.6300 |
| Maximum Drill Diameter (Decimal Inch) | 0.6650 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 7.5600 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 16 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 8.5600 |
| Overall Length (Decimal Inch) | 10.5300 |
| Shank Length (Decimal Inch) | 1.9700 |
