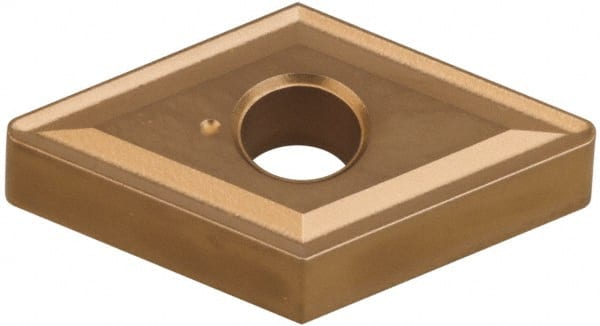

Tungaloy - DNMA432 Grade T5125 Carbide Turning Insert - TiCN/Al2O3 Finish, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 35561091
Brand: Tungaloy
Model #: 6850202
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMA |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | T5125 |
| Coating | TiCN/Al2O3 |
| Material Grade | C5 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | K |
| Included Angle | 55 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
