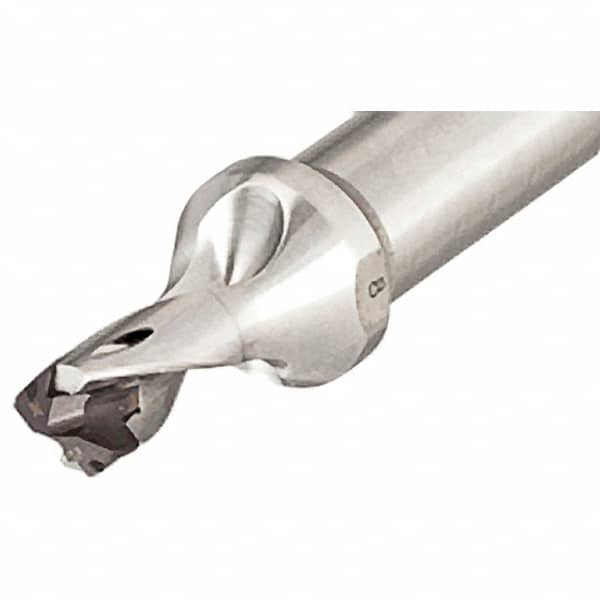

Iscar - 0.827 to 0.862" Diam, 1.5xD, 1.26" Max Depth, 1" Shank Diam, 4-3/4" OAL, Replaceable Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, ICP-2M Insert, 21 Seat Size, DCN Toolholder, Series SumoCham
Item #: 35585884
Brand: Iscar
Model #: 3202651
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.8270 |
| Maximum Drill Diameter (Decimal Inch) | 0.8620 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.2600 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 21 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 2.5500 |
| Overall Length (Decimal Inch) | 4.7500 |
| Shank Length (Decimal Inch) | 2.2000 |
