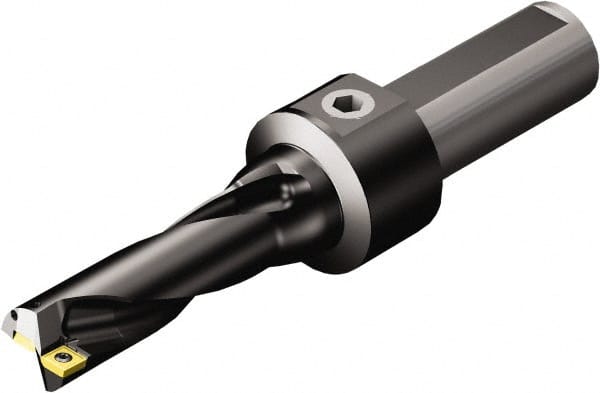

Sandvik Coromant - 2.598" Max Drill Depth, 3xD, 0.812" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Flange Shank
Item #: 35586437
Brand: Sandvik Coromant
Model #: 5723648
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (Decimal Inch) | 0.8120 |
| Maximum Drill Depth (Decimal Inch) | 2.5980 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8750 |
| Overall Length/Projection (Decimal Inch) | 7.5270 |
| Insert Compatibility | 880-040305H-C-GM; 880-0403W05H-P-GM |
| Flute Length (Decimal Inch) | 2.4360 |
| Body Length (Decimal Inch) | 4.5098 |
| Shank Length (Decimal Inch) | 3.0172 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.80 |
