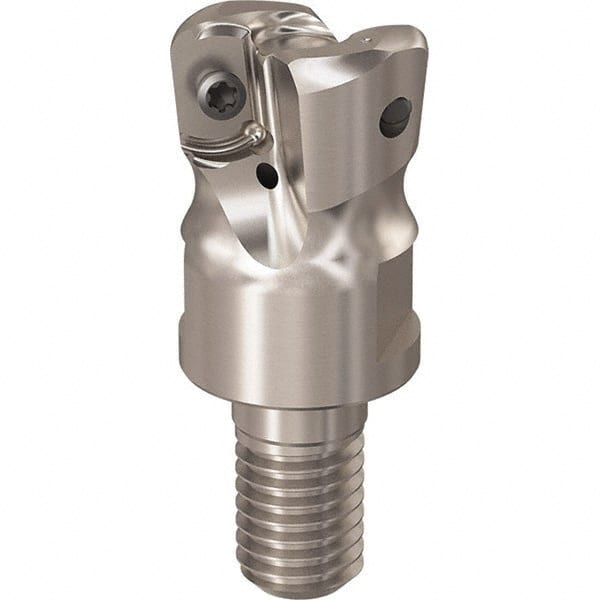

Seco - R217.21.RE 10mm Threaded Shank Milling Tip Insert Holder & Shank - 1.102362" Projection, 1" Neck Diam, M10 Neck Thread, 20mm Nose Diam, 28mm OAL, Tool Steel Tool Holder
Item #: 35796002
Brand: Seco
Model #: 09976
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | R217.21.RE |
| Shank Type | Threaded |
| Shank Taper Size | None |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Projection (mm) | 28.00 |
| Projection (Inch) | 1.1024 |
| Projection (Decimal Inch) | 1.1024 |
| Neck Diameter (Decimal Inch) | 1.0000 |
| Neck Thread Size | M10 |
| Nose Diameter (mm) | 20.00 |
| Nose Diameter (Decimal Inch) | 0.7874 |
| Toolholder Material | Tool Steel |
| Overall Length (mm) | 28.00 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 1.1024 |
| Thread Size Connection to Shank | M10 |
