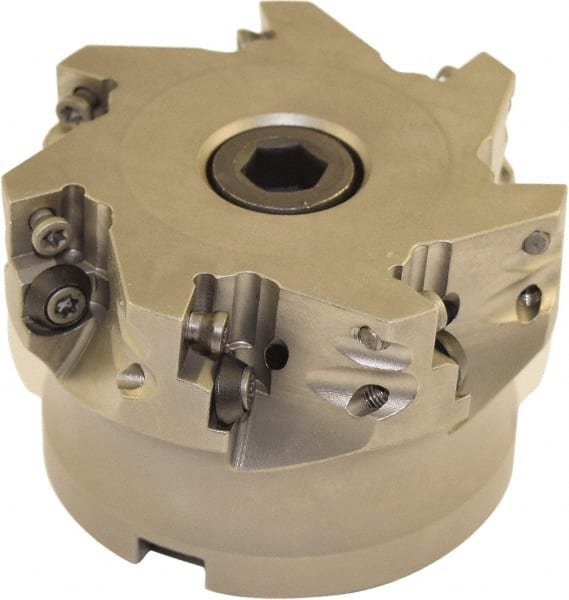

Millstar - 7 Inserts, 3" Cutter Diam, 0.06" Max Depth of Cut, Indexable High-Feed Face Mill - 1" Arbor Hole Diam, 3/8" Keyway Width, 1.968" High, HFA Toolholder, HFCI-1204 Inserts, Series HFA
Item #: 35796143
Brand: Millstar
Model #: HFA30007
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Cutting Diameter (Inch) | 3 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 1.9680 |
| Series | HFA |
| Cutter Style | HFA |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | HFCI-1204 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 7 |
| Maximum Body Diameter (Decimal Inch) | 3.0000 |
| Through Coolant | Yes |
| Keyway Width (Decimal Inch) | 0.3750 |
