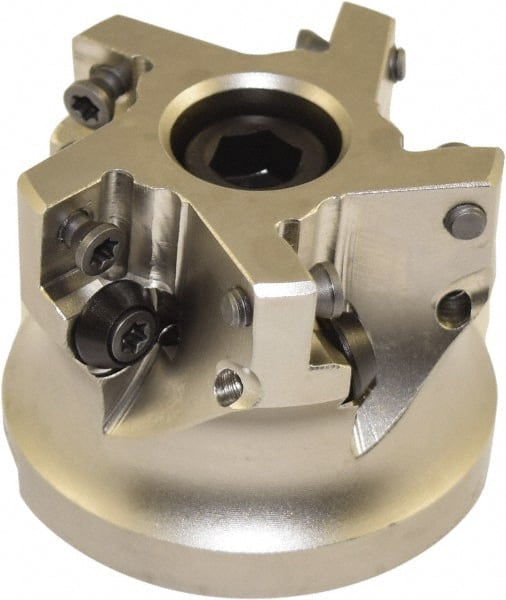

Millstar - 5 Inserts, 2" Cutter Diam, 0.06" Max Depth of Cut, Indexable High-Feed Face Mill - 3/4" Arbor Hole Diam, 0.312" Keyway Width, 1.575" High, HFA Toolholder, HFCI-1204 Inserts, Series HFA
Item #: 35796176
Brand: Millstar
Model #: HFA20005
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 1.5750 |
| Series | HFA |
| Cutter Style | HFA |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | HFCI-1204 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Maximum Body Diameter (Decimal Inch) | 2.0000 |
| Through Coolant | Yes |
| Keyway Width (Decimal Inch) | 0.3120 |
