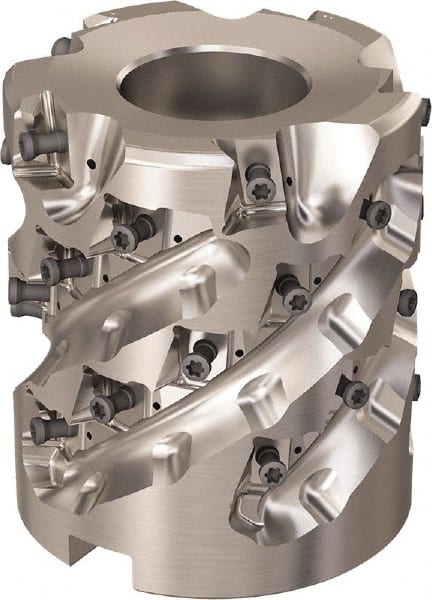

Seco - 30 Inserts, 3.1496" Cut Diam, 1.26" Arbor Diam, 69mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 3.5433" High, LOEX-12 Insert Compatibility, Through Coolant, Series Square T4-12
Item #: 35835503
Brand: Seco
Model #: 29328
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3.1496 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (Inch) | 1.2600 |
| Lead Angle | 90 |
| Overall Height (Inch) | 3.5433 |
| Insert Compatibility | LOEX-12 |
| Series | Square T4-12 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 69.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.7165 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 30 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 76.60 |
| Hub Diameter (Decimal Inch) | 3.0157 |
| Hub Diameter (Inch) | 3.016 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Inch) | 0.5669 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Pitch | Normal |
| Toolholder Material | Steel |
