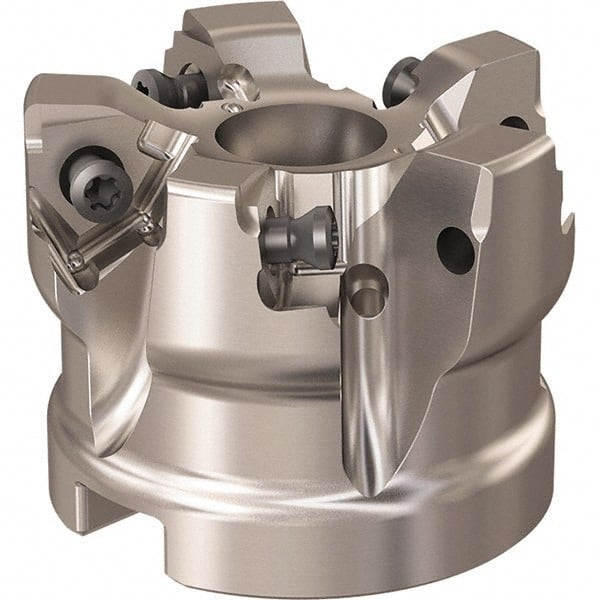

Seco - 5 Inserts, 52mm Cut Diam, 22mm Arbor Diam, 7.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 40mm High, XNEX 08 Insert Compatibility, Through Coolant, Series R220.96
Item #: 35888155
Brand: Seco
Model #: 44927
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 52.00 |
| Cutting Diameter (Decimal Inch) | 2.0472 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | XNEX 08 |
| Series | R220.96 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | R220.96 |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Inch) | 0.4094 |
| Keyway Width (Decimal Inch) | 0.4094 |
