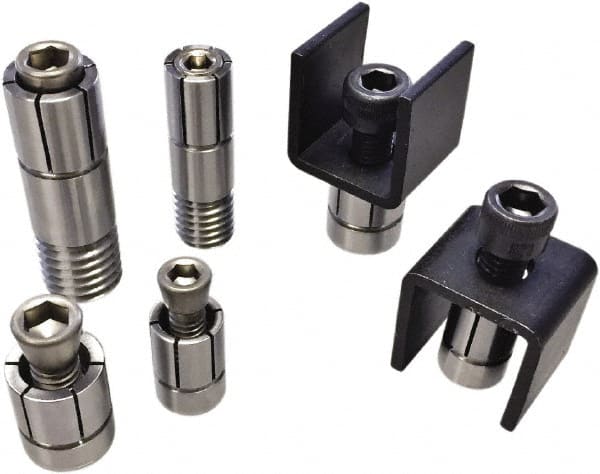

Mitee-Bite - 0.625 to 0.03" Expansion Diam, 2,500 Lb Holding Force, 5/16-18 Mounting Screw, Stainless Steel ID Expansion Clamp - 5/8" Flange Diam, 5/8" Flange Thickness, 5/8" Mount Hole Diam, 1 Mount Hole, 3/4" Overall Height
Item #: 35939883
Brand: Mitee-Bite
Model #: 31760
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is made of iron and chromium and is resistant to rust and corrosion. It offers high tensile strength and can be used in several environments.
| Product Specifications | |
|---|---|
| Flange Diameter (Decimal Inch) | 0.6250 |
| Maximum Expansion Diameter (Decimal Inch) | 0.0300 |
| Minimum Expansion Diameter (Decimal Inch) | 0.6250 |
| Holding Force (Lb.) | 2500.00 |
| Mounting Screw Thread Size | 5/16-18 |
| Material | Stainless Steel |
| Mount Hole Diameter (Decimal Inch) | 0.6250 |
| Flange Thickness (Decimal Inch) | 0.6250 |
| Expansion Height (Decimal Inch) | 0.5000 |
| Overall Height (Decimal Inch) | 0.7500 |
| Number of Mount Holes | 1 |
| Thread Length Below Base (Decimal Inch) | 0.5200 |
