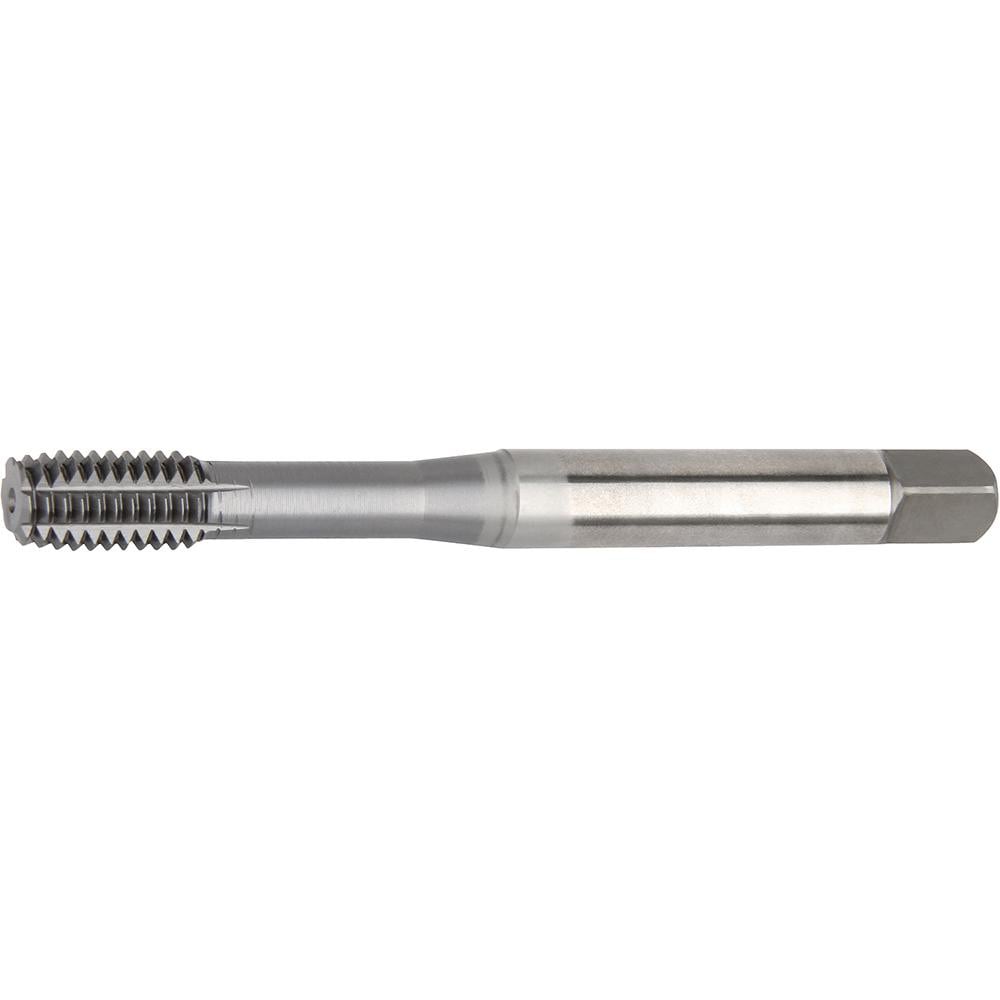

Brand: Widia / Part #: 5945078
Item #: 98993363
Brand: Widia
Model #: 5945078
Product Specifications
| Thread Size (mm) | M16x1.5 |
| Overall Length (mm) | 110.0000 |
| Chamfer | Semi-Bottoming |
| Coating/Finish | TiCN |
| Thread Limit | D11 |
| Thread Pitch (mm) | 1.50 |
| Thread Standard | Metric Fine |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (mm) | 20.00 |
| Thread Depth (mm) | 51.00 |
| Thread Depth | 51.0000 |
| Shank Diameter (mm) | 12.1900 |
| Neck Length | 31.00 |
| Square Length (mm) | 14.20 |
| Material Application | Stainless Steel |
| Application | Metal |
| Series | GT25 |
| Tap Type | Blind |
| Tapping Depth (mm) | 51.00 |
| Shank Length (mm) | 59.000 |
| Square Size (mm) | 9.07 |
| Threads per Inch | 17 |
| Class Of Fit | 6H |
| Coolant Through | Yes |
