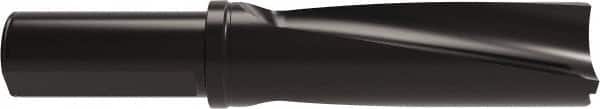

Allied Machine and Engineering - Series APX 63, Head Connection 00, 3xD, 2" Diam Shank, Drill Body - 10.3437" Body Length to Flange, W6303H Toolholder, 2-3/4 Nose Diam, 14.8375" OAL, Through Coolant
Item #: 35959022
Brand: Allied Machine and Engineering
Model #: W6303H-200F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | APX 63 |
| Head Connection Size | 00 |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Diameter (Inch) | 2 |
| Drill Body Length to Flange (Decimal Inch) | 10.3437 |
| Toolholder Style | W6303H |
| Nose Diameter (Decimal Inch) | 2.7500 |
| Overall Length (Decimal Inch) | 14.8375 |
| Gage Length (Decimal Inch) | 10.3438 |
| Shank Length (Decimal Inch) | 4.5000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
