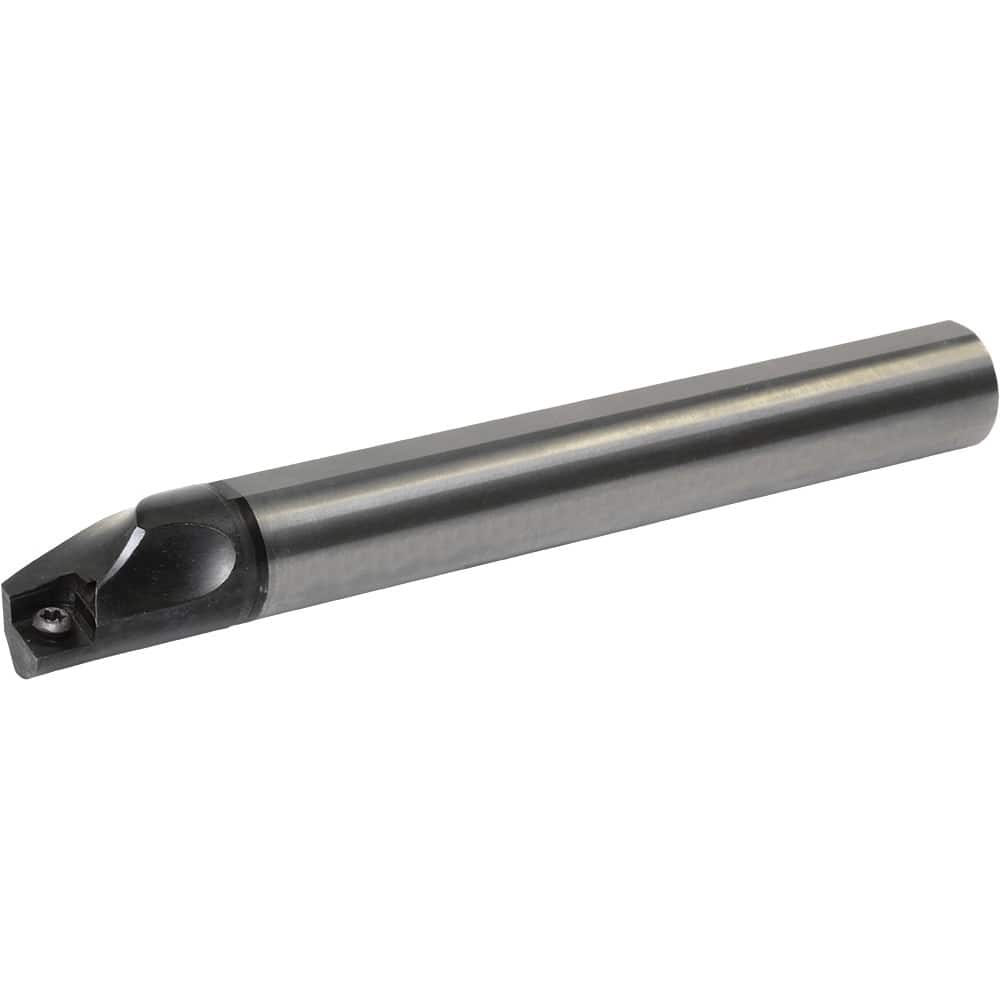

Kyocera - 15.24mm Min Bore, 23mm Max Depth, Right Hand E...SCLC Indexable Boring Bar
Item #: 35989284
Brand: Kyocera
Model #: 8835219
Product Specifications
| Toolholder Style | E...SCLC |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 15.240 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 23.00 |
| Overall Length (Decimal Inch) | 7.10000 |
| Shank Diameter (Inch) | 0.5 |
| Insert Compatibility | CCGT215?; CCMT215?; CCET215?; CCGW215?; CCMW215? |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 7.00 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | -10 (Radial);0 (Axial) |
| Coolant Hole Diameter (mm) | 4.00 |
| Toolholder Material | Steel; Carbide |
