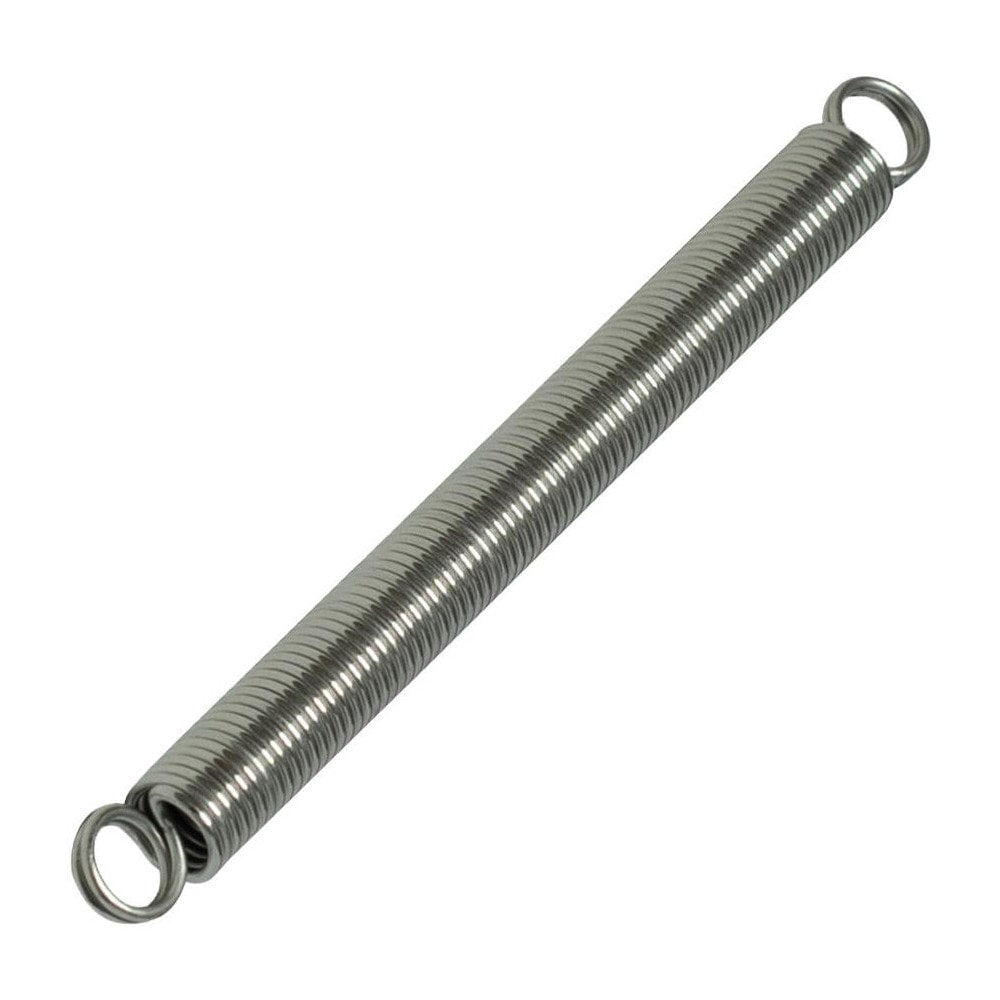

Extension Springs; End Type: Double Loop; Outside Diameter (Decimal Inch
Item #: 03372299
Brand: Associated Spring Raymond
Model #: MCDE0625010600S
Product Specifications
| End Type | Double Loop |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.6250 |
| Spring Rate | 2.9000 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 6.1440 |
| Initial Tension (Lb.) | 4.34 |
| Maximum Extended Length (Decimal Inch) | 10.6200 |
| Free Length (Inch) | 6 |
| Inside Hook Length (Fractional Inch) | 6 |
| Standards | ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (Decimal Inch) | 0.0720 |
| UNSPSC Code | 31161907 |
