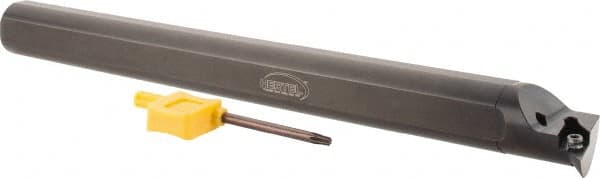

Hertel - 0.77" Min Bore Diam, 10" OAL, 5/8" Shank Diam, A10SSCLCL3 Indexable Boring Bar - 1-7/8" Max Bore Depth, CP.. 32.52 Insert, Screw-On Holding Method
Item #: 36018182
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A10SSCLCL3 |
| Series | A |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.3750 |
| Minimum Bore Diameter (mm) | 19.56 |
| Minimum Bore Diameter (Inch) | 0.7700 |
| Minimum Bore Diameter (Decimal Inch) | 0.7700 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 47.63 |
| Maximum Bore Depth (Inch) | 1-7/8 |
| Maximum Bore Depth (Decimal Inch) | 1.8750 |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | CP.. 32.52 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Multi-Use Application | Boring |
| Insert Holding Method | Screw-On |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4060 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| Toolholder Material | Steel |
