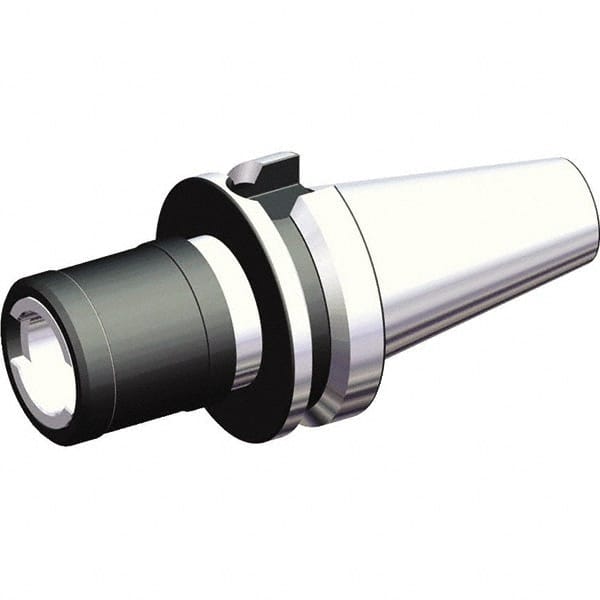

Kennametal - BT30 Taper Shank Tension & Compression Tapping Chuck - M10 to M20 Tap Capacity, 98.4mm Projection, Through Coolant
Item #: 36018869
Brand: Kennametal
Model #: 5525780
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | BT30 |
| Minimum Tap Capacity (mm) | M10 |
| Maximum Tap Capacity (mm) | M20 |
| Projection (Decimal Inch) | 3.8740 |
| Projection (mm) | 98.40 |
| Quick Change | No |
| Collet Series | ER32 |
| Nose Diameter (mm) | 45.00 |
| Nose Diameter (Decimal Inch) | 1.7720 |
| Tension (mm) | 0.50 |
| Compression (Decimal Inch) | 0.0200 |
| Compression (mm) | 0.50 |
| Overall Length (mm) | 164.80 |
| Overall Length (Decimal Inch) | 3.8740 |
| Through Coolant | Yes |
