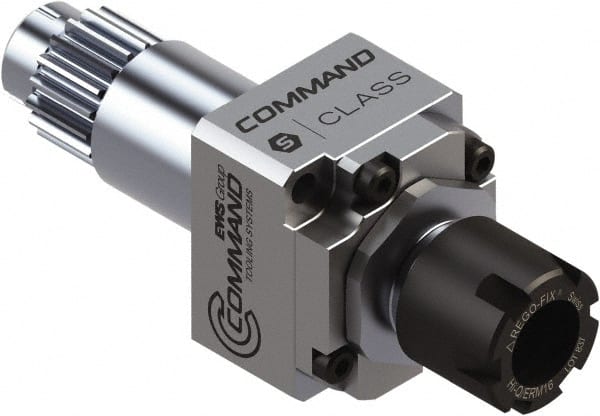

Command Tooling - 0.007" to 13/32" Capacity, 52mm Projection, Swiss Star, ER16 Collet Chuck - 98mm OAL, 22mm Shank Diam
Item #: 36050565
Brand: Command Tooling
Model #: LSA1C1604
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Swiss Star |
| Shank Diameter (mm) | 22.00 |
| Shank Diameter (Decimal Inch) | 0.8660 |
| Projection (mm) | 52.00 |
| Projection (Decimal Inch) | 2.0472 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.0070 |
| Minimum Collet Capacity (mm) | 0.20 |
| Maximum Collet Capacity (mm) | 10.32 |
| Maximum Collet Capacity (Decimal Inch) | 0.4060 |
| Overall Length (mm) | 98.00 |
| Overall Length (Decimal Inch) | 3.8600 |
| Maximum RPM | 8000 |
| PSC Code | 5136 |
| TIR (mm) | 0.0020 |
