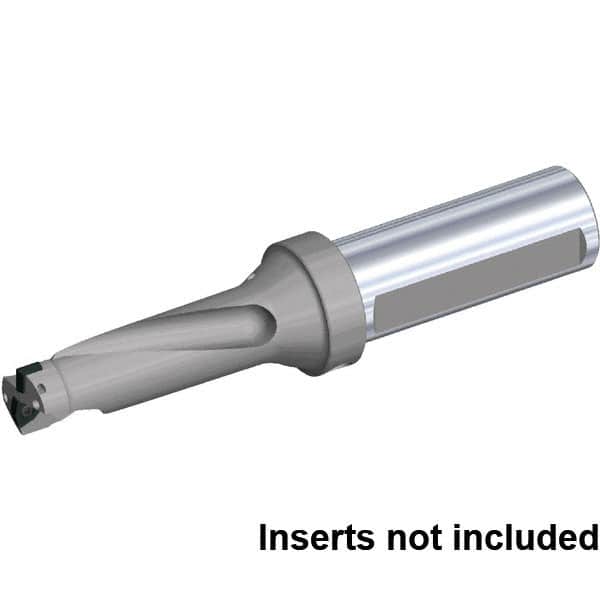

Kennametal - 1.689" Max Drill Depth, 3xD, 9/16" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Flange Shank
Item #: 36065688
Brand: Kennametal
Model #: 5689646
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (Inch) | 9/16 |
| Drill Diameter (Decimal Inch) | 0.5625 |
| Maximum Drill Depth (mm) | 42.90 |
| Maximum Drill Depth (Decimal Inch) | 1.6890 |
| Maximum Drill Depth (Inch) | 1.689 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 117.42 |
| Overall Length/Projection (Decimal Inch) | 4.6228 |
| Insert Compatibility (Outside or Peripheral) | SPGX0502.. |
| Insert Compatibility | DFTX202.. |
| Flute Length (mm) | 44.00 |
| Flute Length (Decimal Inch) | 1.7320 |
| Body Length (Decimal Inch) | 2.6228 |
| Body Length (mm) | 66.62 |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
