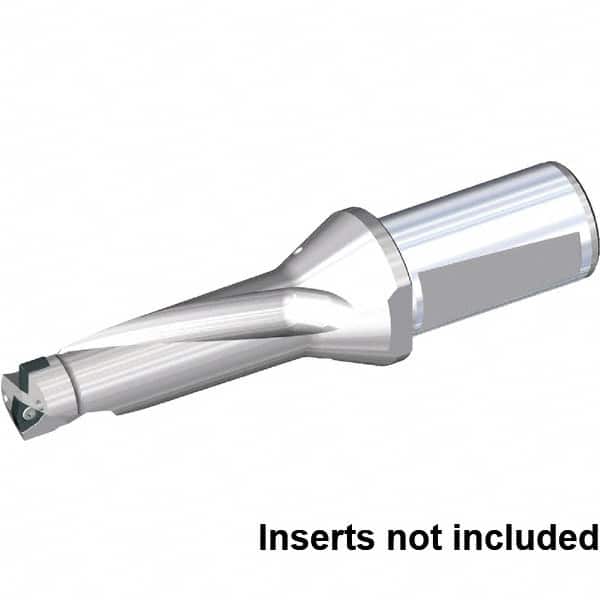

Kennametal - 2" Max Drill Depth, 3xD, 0.67" Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 36065829
Brand: Kennametal
Model #: 5689636
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 17.00 |
| Drill Diameter (Inch) | 0.6700 |
| Drill Diameter (Decimal Inch) | 0.6700 |
| Maximum Drill Depth (mm) | 51.00 |
| Maximum Drill Depth (Decimal Inch) | 2.0080 |
| Maximum Drill Depth (Inch) | 2.008 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.5740 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 138.00 |
| Overall Length/Projection (Decimal Inch) | 5.4330 |
| Insert Compatibility (Outside or Peripheral) | SPGX0502.. |
| Insert Compatibility | DFTX202.. |
| Flute Length (mm) | 62.00 |
| Flute Length (Decimal Inch) | 2.4410 |
| Body Length (Decimal Inch) | 3.1500 |
| Body Length (mm) | 80.00 |
| Shank Length (mm) | 58.00 |
| Shank Length (Decimal Inch) | 2.2830 |
