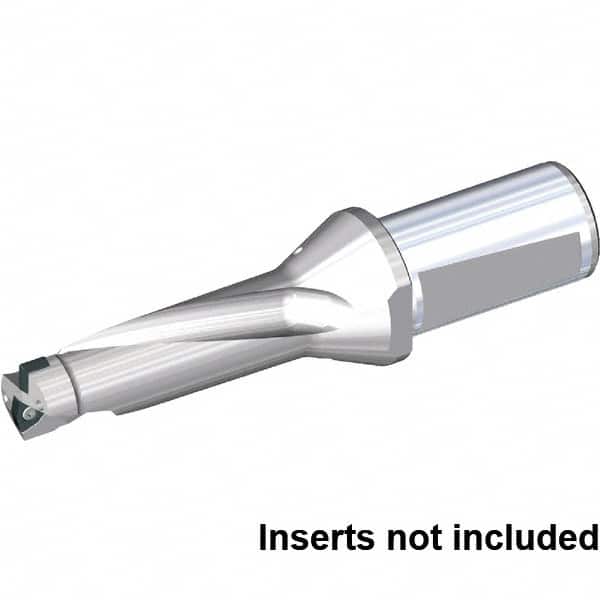

Kennametal - 1.713" Max Drill Depth, 3xD, 14.5mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Whistle Notch Shank
Item #: 36065878
Brand: Kennametal
Model #: 5689631
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 14.50 |
| Drill Diameter (Decimal Inch) | 0.5700 |
| Maximum Drill Depth (mm) | 43.50 |
| Maximum Drill Depth (Decimal Inch) | 1.7130 |
| Maximum Drill Depth (Inch) | 1.713 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7900 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 112.50 |
| Overall Length/Projection (Decimal Inch) | 4.4290 |
| Insert Compatibility (Outside or Peripheral) | SPGX0502.. |
| Insert Compatibility | DFTX202.. |
| Flute Length (mm) | 50.00 |
| Flute Length (Decimal Inch) | 1.9690 |
| Body Length (Decimal Inch) | 2.6570 |
| Body Length (mm) | 67.50 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7720 |
