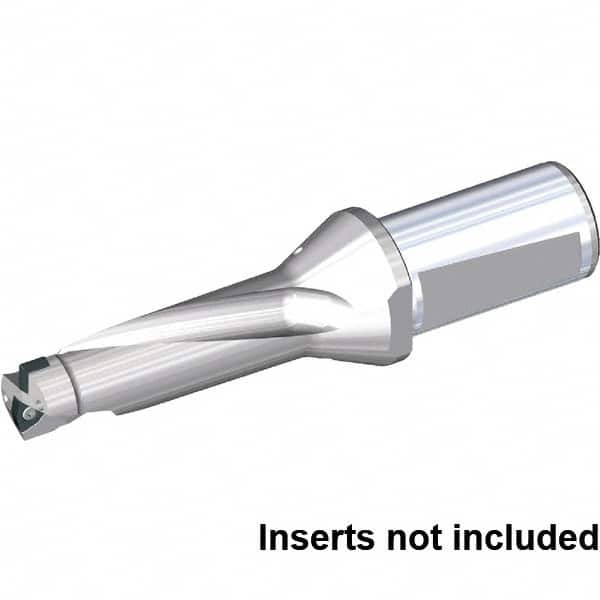

Kennametal - 1.654" Max Drill Depth, 3xD, 14mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Whistle Notch Shank
Item #: 36065886
Brand: Kennametal
Model #: 5689630
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFS |
| Drill Diameter (mm) | 14.00 |
| Drill Diameter (Decimal Inch) | 0.5500 |
| Maximum Drill Depth (mm) | 42.00 |
| Maximum Drill Depth (Decimal Inch) | 1.6540 |
| Maximum Drill Depth (Inch) | 1.654 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7900 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 109.00 |
| Overall Length/Projection (Decimal Inch) | 4.2920 |
| Insert Compatibility (Outside or Peripheral) | SPGX0502.. |
| Insert Compatibility | DFTX202.. |
| Flute Length (mm) | 46.00 |
| Flute Length (Decimal Inch) | 1.8110 |
| Body Length (Decimal Inch) | 2.5200 |
| Body Length (mm) | 64.00 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7720 |
